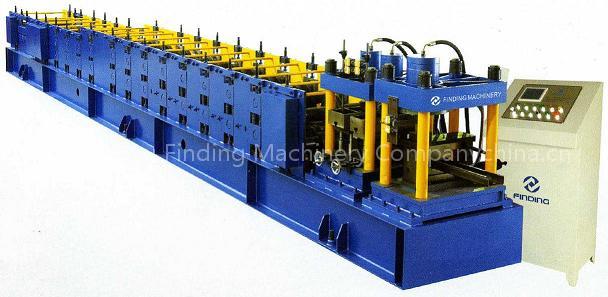

C/Z shape purlin forming machine

C/Z shape purlin forming machine FDYX
:
HangZhou Finding Machinery Company
: 2010-07-20
:
C shape steel purlin,z shape purlin forming machi
Introduction: CPurlineFormingMachinecanproducemany...

Inquiry Supplier / Manufacturer
Description Of C/Z shape purlin forming machine

C/Z shape purlin forming machine Trade & Shipment Terms

ModelFDYX
Place Of OriginChina
Price TermEX-Work
Introduction:    C Purline Forming Machine can produce many types of C-shaped purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment,flattening device,roll forming system, punching equipment, cutting equipment,hydraulic station, PLC controlling system and support table.

Product Feature And Usage:    The C-shaped purlines formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Main Technical Specification:    1.Size: about 23000mm×2400mm×1400mm
  2.Total weight: about 13,000kg
  3.Controlling system: PLC
  motor power:15kw Levelling motor power: 2.2kw
  5.Working speed: 8000-10000mm/min
  6.Hydraulic pressure: 18-20Mpa
  7.Product range: all the type from 100 to 300

Suitable Material For Production:    Cold-rolled steel strip and heat-treated galvanized steel strip
 Material thinckness:1.6-3.0 mm.
