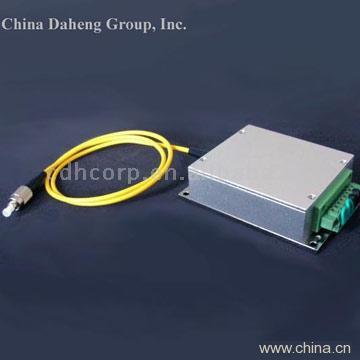

Dual-Wavelength Fiber Bundled Laser Module

Supplier / Manufacturer:
China Daheng Group, Inc.
Added since: 2010-05-26
Product Categories:

ModelNo.:GCSLX-Duet-BxxxxProductOrigin:ChinaBrandN...

Inquiry Supplier / Manufacturer

Description Of Dual-Wavelength Fiber Bundled Laser Module

Dual-Wavelength Fiber Bundled Laser Module Trade & Shipment Terms

Place Of Origin	China (Mainland)
Price Term	EX-Work

Conatct Supplier

Model No.:GCSLX-Duet-Bxxxx
Product Origin:China
Brand Name:CDHC
Price Terms:
Payment Terms:
Certification:
Description:The GCSLX-Duet-B0510 series provides two working wavelengths from a 300um-600um fiber bundle with N.A.0.22. GCSLX-Duet-Bxxxx features 808nm & 660nm. Various combinations to meet customer's needs. Customers can customize their specifications by giving alternate wavelengths, connector terminations, various fiber lengths and delivery fibers.Specifications:Dual wavelength: 808nm, 660nmOutput power: 2~10W@808nm, 200mW@660nmFiber bundle dia.: 300um, 400um with N.A.0.22Connector: SMA905Cooling: air cool for 808nm, TEC for 660nmPackage: 90x 65 x 25mm, 123 x 80 x 27mmType No.GCSLX-Duet-B0510-202 (808nm/2W & 660nm/200mW) / 300um fiber bundleGCSLX-Duet-B0510-402 (808nm/4W & 660nm/200mW) / 300um fiber bundleGCSLX-Duet-B0510-502 (808nm/5W & 660nm/200mW) / 300um fiber bundleGCSLX-Duet-B0510-1002 (808nm/10W & 660nm/200mW) / 400um fiber bundle
