Hydraulic sheet rolling machine

Supplier / Manufacturer:
Changzhou Yatelan Machine Manufacture Co.,Ltd
Added since: 2010-07-21
Product Categories:
lling machine,hydraulic rolling machine,hydrau
productinformation:Hydraulicautomaticrollingmachin...

Inquiry Supplier / Manufacturer

Description Of Hydraulic sheet rolling machine

Hydraulic sheet rolling machine Trade & Shipment Terms

Model	Yzj500-1500
Place Of Origin	China
Price Term	EX-Work

Conatct Supplier

product information :

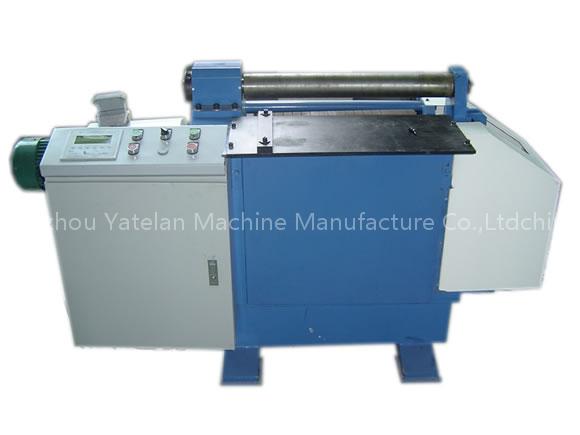

Hydraulic automatic rolling machine
Specification:
Power:hydraulic
Model number:Yzj500-1500
Raw material:Sheet/plate rolling
Machine type:roller-bending machine
(1) There are just 2 rollers
(2) The productive speed of the machine is much faster than the one which has three rollers
(3) The product`s roundness is very good ,and it is much better than the one produced by three rollers hydraulic rolling machine
(4) There is no hem at the edge of the steel plate processed . Model          rated capacity     Air pressure range      working diameter             working length        working thickness
Yzj500         1.1kw                   0.15Mpa-0.6Mpa           85mm-120mm                50mm-500mm        0.3mm-5mm
Yzj800         3kw                      1.5Mpa-4.5Mpa             85mm-250mm                200mm-800mm       0.3mm-5mm
Yzj1000       4.5kw                  1.5Mpa-4.5Mpa             150mm above                200mm-1000mm       0.3mm-5mm
Yzj1200       6.5kw                  1.5Mpa-4.5Mpa             200mm above                200mm-1200mm       0.3mm-5mm
Yzj1500       8.5kw                  1.5Mpa-4.5Mpa             200mm above                200mm-1500mm       0.3mm-5mm
