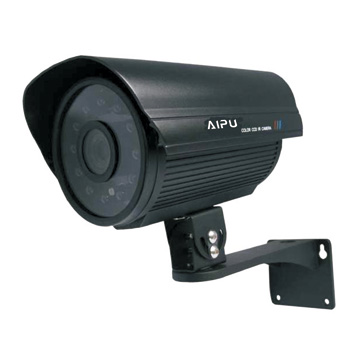

License Plate Camera (CCTV IR Camera) - APG-BC100-IR04RS

License Plate Camera (CCTV IR Camera) - APG-BC100-IR04RS
:
Shanghai Aipu Waton Electronic Industries Co.,Ltd.
: 2009-02-09 01:08:24
:
Surveillance Equipment

Inquiry Supplier / Manufacturer
Description Of License Plate Camera (CCTV IR Camera) - APG-BC100-IR04RS

License Plate Camera (CCTV IR Camera) - APG-BC100-IR04RS Specificaton & Trade Terms

ModelAPG-BC100-IR04RS
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Features:
* 1/3 SONY CCD,560 TVLINE,
* IP66 waterproof shell, 12VDC/24VAC(filter voltage: DC5V, positioning system without power), dual-power lightning strike protection
* Specially designed light board suitable to lens angle with proportional spacing for IR LED

Technical Data
Model No. APG-BC100-IR04RS
TV System NTSC/PAL
Image Device 1/3" Sony high resolution color CCD
Horizontal Resolution 560TVL
CCD pixel NTSC:811H508V / PAL:795H596V
Scanning System 2:1 Interlace
Sync System Internal Synchronization
Horizontal Frequency NTSC:15.734Hz / PAL:15.625kHz
Vertical Frequency NTSC:60Hz / PAL:50.00Hz
Video Output Composite & Separate Video output,1.0Vp-p at 75ohm
Pulse Level 0.286Vp-p
Function BLC(ON/OFF),ATW/AWC,H/V-MIRROR,SENSE UP/DSS(Smart)
S/N Ratio ≥52dB
Minimum Illumination 0.001Lux/F1.2(Dual-filter Cut), 0.00045Lux of F1.2(Frame Accumulation)
Gamma Correction 0.45
AGC +18dB max.
Auto Iris Lens Video Drive / Electronic Shutter / DC Drive
Electronic Shutter 1/50 sec.
Communication Serial Interface I/F
Power Requirements DC 12V1V
Power Consumption Camera: 90mA / IR Lamp: 40amp.
