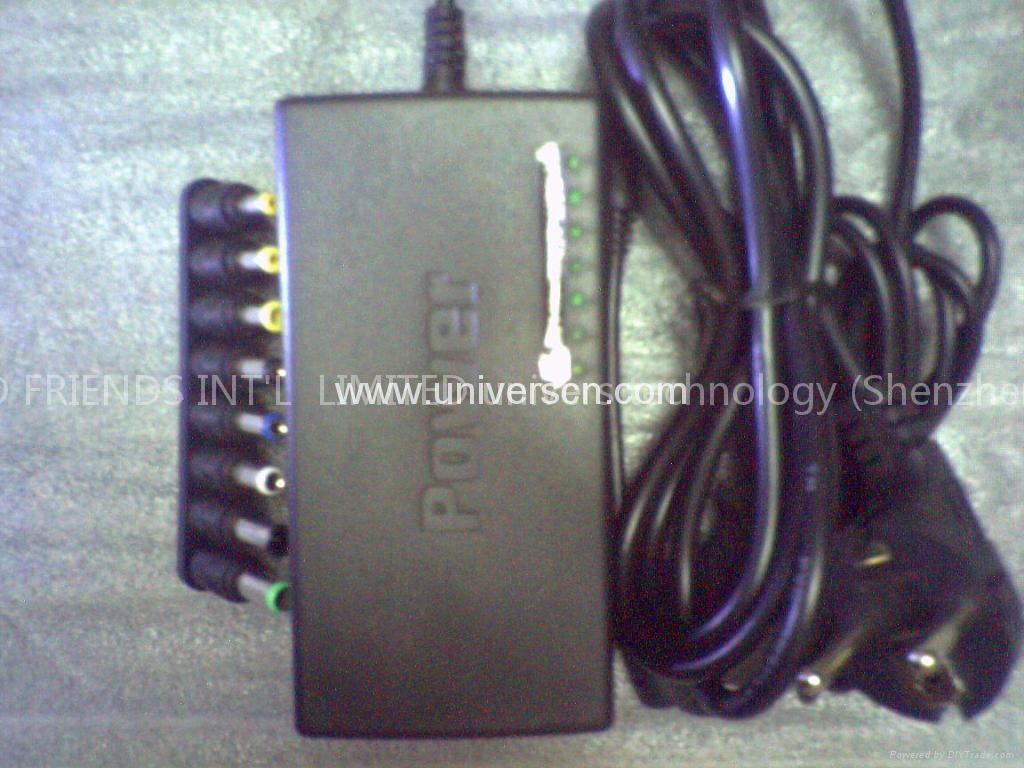

Notebook power adapter 96watt (NEWŁ© Trade & Shipment Terms
Model | AC96W |
---|
Place Of Origin | China (Mainland) |
---|
Price Term | EX-Work |
---|
General Description:
This model is an universal switching-mode power supply for notebook computer, operation at input AC 100V to 240V 47-63Hz, Output DC 7 voltages: 15V/16V/18V/19V/20V/22V/24V,output current 4.5Amp max, output power 100 Watt max, with protection functions: Overload protection, Short Circuit Protection, power supply by mains supply. With 8PCS tip connecter to suit to main notebook computers, Select output voltage to suit to notebook computer and make sure the polarity of tips connect correct before use.
2.Electric Characteristics:
No. Item Specification
1. Rated Input Voltage(50-60Hz) AC120V OR AC230V
Vibration Input Voltage Range(47-63Hz) AC100V-240V
2. Input Rated Current 2AMP
Input Power 180VA
3. Output power(max) 100W
Efficiency >80%(TYP)
4. Output voltage:15V/16V/18V/19V/20V/22V/24V(0/+0.8V NO LOAD) DC15V-24V
5
Output voltage:
15V/16V/18V/19V/20V/22V/24V(-0.1/+0.8V@rating load)
Output current:15V/16V/18V/19V/20V@4.5A
22V/24V@4ADC15V-24V
4.5AMP(max)
6. Overload protection yes
7. Short Circuit Protection YES
8. Ripple Noise 800mV
9. Line Regulation 5%
10. Load Regulation 5%
3.Weight:325G
4. Case Size:
5. Normal Operating Temperature and Humidity:
5.1 Operating Temperature: 0 to 40
5.2 Humidity: 20% to 80%
6. Storage Temperature and Humidity:
6.1 Storage Temperature: -10 to 70
6.2 Humidity: 10% to 90%
