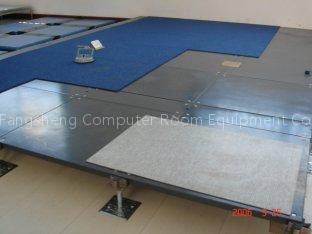

OA 500 Raised Access Floors

Delivery Time:Prompt
Certification:ISO9001
OA 500 Raised Access Floors with dimension 500x500x28mm are specially designed for easy cables layout in telligent outside of the raised floor is made of high-quality cold rolled steel sheet. Advanced spot welding techinical structure is applied to the top and bottom of the raised floor, and in the middle is filled with supporting system is a structure with special designed aluminum head pedestalsand the superior steel sheet bottom, the four corner-lock holes and aluminum head pedestals are directly locked stably, which makes position highly accurate, raised floor flat, structure simple and installation easy.After completing installation, all kinds of cables can be distruted and maintained as long as lightly lifting panels, so it is safe and convenient for users in process of using. Type and Specifications: Type Size (mm) Concentrated Load Uniform Load (N/m2) Ultimate Limit Load   (N) Remark International National Standard SJ/T10796 Ib N Kg FS450 OA501 OA502 CS1000 600x600x30 450 1980 200 10000 5900 500Type   FS680 600x600x30 680 3040 300 12500 8850 FS800 600x600x35 800 3560 360 18140 10700 FS1000 610x610x35 1000 4450 450 23000 13350 FS450 OA600 OA610 600x600x35 450 1980 200 10000 5900 600Type   FS680 680 3040 300 12500 8850 FS800 800 3560 360 18140 10700 FS1000 1000 4450 450 23000 13350 FS1250 1250 5560 560 33000 16680 FS1500 1500 6670 680 44900 22680
