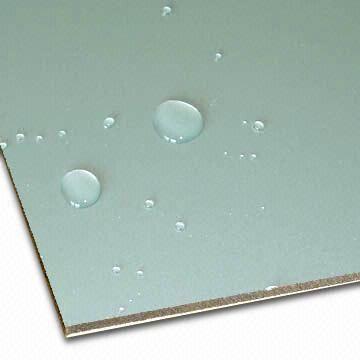

PVDF ACP - SX1804 Specificaton & Trade Terms
| Model | SX1804 |
|---|
| Place Of Origin | CHINA |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
1) Standard dimensions (width x length x thickness):
a) 1,220 x 2,440 x 3mm
b) 1,220 x 2,440 x 4mm
2) Specifications
Thickness:3mm,4mm,5mm,etc.
Width:1,000mm, 1,220mm, 1,250mm, 1,550mm,1575mm etc.
Length:2440mm--6000mm ,upon customers' requests.
3) Normal color:
30 kinds of colors
Material:
a) Front: aluminum alloy sheet coated with PVDF roasting painting .
b) Core: nontoxic polyethylene, or fireproof B1 class core
c) Back: aluminum alloy sheet coated with polyester resin painting.
d) Surface finish: treated with PVDF resin rolling roasting coating .
Characteristics:
a) Super peeling strength.
b) Excellent surface flatness and smoothness.
c) Superior weather, corrosion, pollutant resistance.
d) Even coating, various colors.
e) Fireproof, excellent heat and sound insulation.
f) Superior impact resistance.
g) Lightweight and easy to process.
h) Easy to maintain.
Applications:
Exterior wall,advertisting board or other exterior using.
