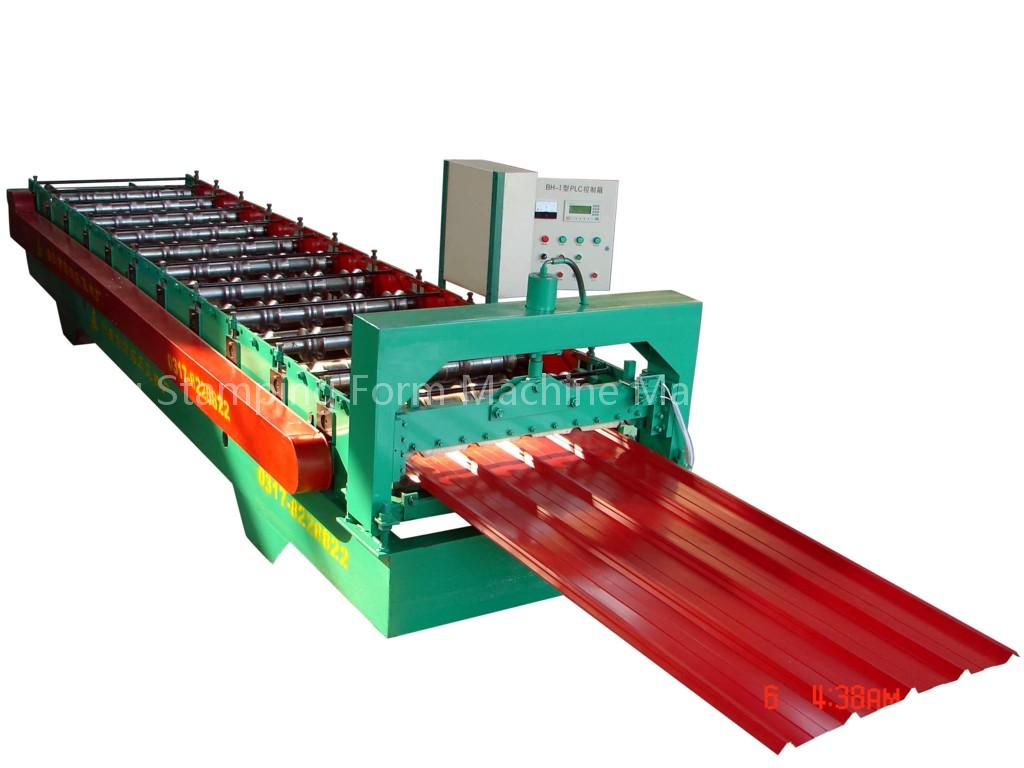

Roll-forming Machine

It consists of uncoiler,coil sheet guiding equipment,roll forming system,post-cutting,hydraulic system and supporter table.
Technique parameter:(1)Sitable to process: colored armor plate with the bending intensity of 235mpa(2)Thickness of the plate : 0.3-0.8mm(3)Width of the plate: 1000mm        (4)Productivity :0-15m/min(5)Rollers:11----10 rows          (6)Diameter of the roller: 70mm(7)Dimensions: major structure: 6.5m×1.5m ×1.4m(8)Weight:3.7t(9)Power:4kw+3kw          (10)Effective area for use :840mm/900mmMaterial of main equipment:
1) Roller material: high grade No.45 forged steel, plated hard chrome on
the surface of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at
diameter 70mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) the panel surface no scratch 5)Frequency converter 6)PLC: Computer adopt PLC, Mitsubishi FX-IS series7)Computer operating board adopt OP320A, China Process flow:  loadingmoldingcuttingpunchingoff-discharging
