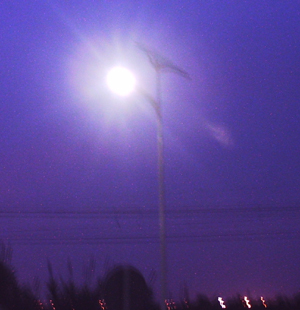

Street Solar Lighting - LED-02 Specificaton & Trade Terms
| Model | LED-02 |
|---|
| Place Of Origin | P.R.China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
We supply different styles of solar street lighting, the poles’ design can be customized:
Height: 5m-9m
LED light fixuture: 80W/60W
Solar panel module power: 150Wp-300Wp
Battery: lead acid, 2*12V, life span more than 5 years.
Working voltage: 24v DC
Control system: special intelligent controller. Switching on/off by photocell. Life span more than five years.
Working temperature: minus 30 degree celsius to 70 degree celsius.
Lumination time: 8-12 hours per day (can be customized)
Continuous raining day: 4-7 days (can be customized)
Solar panel life: 25 years
Led lamp life span: 50,000 hours.
Luminous efficiency of LED lighting fixture: 70 lm/w
Average intensity of lumination: 15 Lux-30 Lux
Uo: 0.52
Glare index: 3.6%
Attenuation of LED lamp: less than 3% per year
Road width: 6m-12m (single side)
Space between poles: 25m-30m
Bracket tilt: 15 degrees
Bracket length: 1.0m-1.5m
Wind resistance of the pole structure: 30m/s – 45m/s (can be customized)
