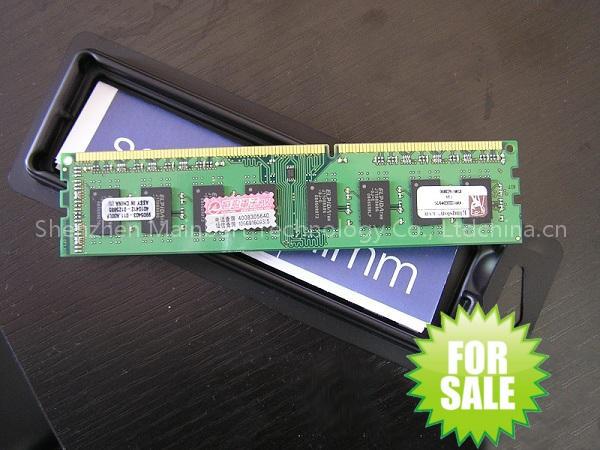

ddr ram

1) DDR 400/333 & DDRII 533/667/800 MHz
2) 168/184/240-pin socket type dual in line memory module (DIMM)
3) 2.6V power supply
4) Data rate: 400/333/533/667/800Mbps (max.)
5) 2.5 V (SSTL-2 compatible) I/O for DDR I products,1.8Vpower supply for DDR II products
6) Double-data-rate architecture, two data transfers per clock cycle
7) Bi-directional, differential data strobe (DQS) is transmitted/received with data, to be used in capturing data at the receiver
8) Data inputs and outputs are synchronized with DQS
9) DQS is edge aligned with data for read, center aligned with data for write
10) Differential clock inputs (CK and CK)
11) DLL aligns DQ and DQS transitions with CK transitions
