fire monitor Trade & Shipment Terms
Model | PSD30-50 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|

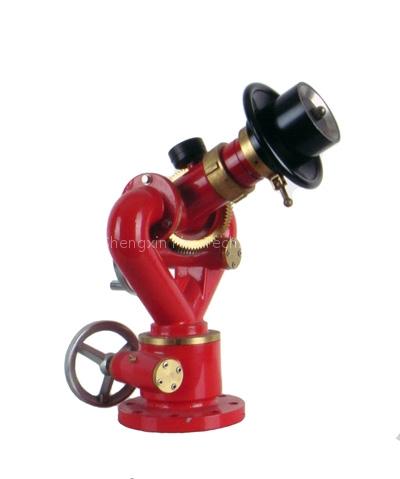

PSD Adjustable Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging the discharge range is also adjustable-----have both solid stream and fog stream. It can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.SpecificationsModelPSD20PSD30PSD40PSD50Rated working pressure(MPA)0.8Range of Working Pressure(MPA)0.5~1.2Flow Rate(L/S)Water20304050Range(M)Water≥50≥55≥60≥65Pitching Angle(°)-30 ~ +70Return Angle360Max. Spray angle (°)≥90Connections(DN=100) FlangeMaterialAluminum Alloy
