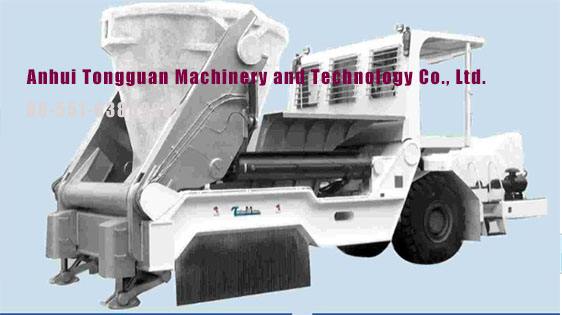

60t slag pot (hold) transport vehicle - ZGC60 Specificaton & Trade Terms
| Model | ZGC60 |
|---|
| Place Of Origin | CHINA |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
ZGC60 slag pot is special transport vehicles with high degree integration of mechanical,electrical and liquid.It can picked up slag pot from ground to vehicles,carrying to the designated place in the factory and then dumping transportation steel slag,or from the vehicle to the ground and other tasks.Mainly used in slag steel transportation.
Main Dimension
Dimension:11000*4200*4300(mm)
Empty weight:50t
Rated load:60t
Grade ability:8%(load) 12%(empty)
Steering angle:+-8degree
Speed Gear1:4km/h
Gear2:9.5km/h
Gear3:15.5km/h
Gear4:18km/h
Max turning angle:+-60degree
Main Configuration
Engine:VOLVO TAD943VE
Torque Converter and Shift Tranmission（intergrant）：DANA T40000
Front axle:OMSI 392
Rear axle:T100
hydraulic pump:Parker
controller:EPEC
