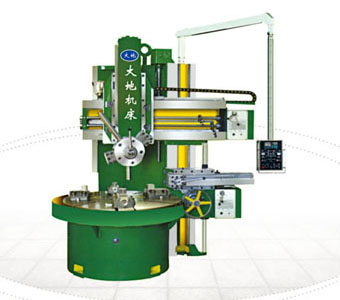

C5125 Single Column Vertical Lathe - C5125 Single Column Vertical Lathe Specificaton & Trade Terms
Model | C5125 Single Column Vertical Lathe |
---|
Place Of Origin | liaoning dalian |
---|
Brand | The Earth |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
The C5125 Single Column Vertical Lathe features
1 The series vertical lathes can be used for mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face,grooving etc.
2 The main shaft of workbench is centered by the high precision and adiustable diametral clearance biserial short cylindrical roller bearing. With the constant current and static pressure rack in axial direction. The workbench has the features of high running accuracy, large carrying capacity and small thermal deformation.
3 The pedestal, workbench. lathe body and beam are made of ferrosteel with high strength and high abrasive resistance , tempering treatment, eliminate internal stress and deformation.
4. The guide surfaces of lathe body. beam and ram using accurate grinding、good interface and high precision. Beams with hydraulic two-spot locking, feeding is large,without tremble.
5. Vertical tool rest has three forms,Square ram, electric knife tool carrier.and manually pentagon knife tool carrier. Side tool posts are equipped with square tool carrier,Both of tool carriers have balanced with hydraulic pressure.
6 The main shaft of the lathe is driven by AC motor. With the 16 step speed changing mechanism to the main shaft. Achieved the workbench rotate speed range.
7 Additional accessories for digital displaying 、electric grinding head and turning tapering can be provided according to customer’s requirements.
Vertical lathe factory: Dalian New Earth Machinery Co.,Ltd, It is one of the largest vertical lathe manufacturer in China, the main products: conventional vertical lathes, CNC vertical lathes, CNC High-speed vertical lathe, Vertical turning Machines, China vertical lathe and so on.
