Cable Drum Handling - deli Specificaton & Trade Terms
| Model | deli |
|---|
| Place Of Origin | China |
|---|
| Packaging | package |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000 |
|---|
| Minimum Order | 1 |
|---|
| Delivery Time | 7 |
|---|
Cable Drum Handling
Cable drum jack/mechanical drum jack/hydraulic drum jack-Designed for heavy drum lift.,which are almost indispensable for use in the cable.

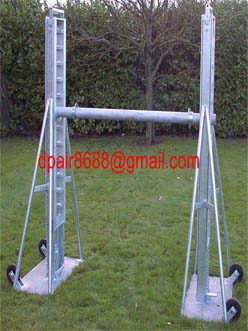

1 TON/ 3 TON/ 5 TON/10 TON/15 TON Mechanical drum jack
Product No.: DL018 Mechanical drum jack
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dead weight
DL018-1 1T φ1160mm-φ1700m ≤1000mm φ60mm 30kg
DL018-3 3T φ1400mm-φ2100mm ≤1400mm φ76mm 40kg
DL018-5 5T φ1600mm-φ2400mm ≤1600mm φ76mm 40kg
Product No.: DL024 Mechanical drum jack
Product No. Rated load Backplane Thick Backplane Diameter Dead Weight
DL028-2 2T 6mm φ800mm 50kg
DL028-3 3T 6mm φ850mm 65kg
DL028-4 4T 8mm φ1000mm 95kg
DL028-5 5T 8mm φ1200mm 125kg
1 TON/ 3 TON/ 5 TON/10 TON/15 TON Hydraulic drum jack
Product No.: DL011 Trapezoidal and hydraulic cable drum jack
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dead weight
DL011-3 3T φ700mm-φ2100mm ≤1500mm φ60mm 90kg
DL011-5 5T φ700mm-φ2400mm ≤1700mm φ76mm 130kg
DL011-10 10T φ700mm-φ3200mm ≤1800mm φ120mm 210kg
Product No.: DL014 Hydraulic cable drum jack
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dead weight
DL014-5 5T φ600mm-φ2400mm ≤1600mm φ76mm 126kg
DL014-10 10T φ600mm-φ2800mm ≤1800mm φ120mm 190kg
DL014-15 15T φ600mm-φ3200mm ≤2000mm φ140mm 246kg
Cable Drum Handling
