Cable Pulling Grips,Conductive Stockings

Inquiry Supplier / Manufacturer
Description Of Cable Pulling Grips,Conductive Stockings - Great wall

Cable Pulling Grips,Conductive Stockings - Great wall Specificaton & Trade Terms

ModelGreat wall
Place Of OriginChina
Packagingcarton
BrandGreat wall
Price TermFOB
Payment TermT/T
Supply Ability1000set/day
Minimum Order1set
Loading Portstianjinxingang
Delivery Time7days

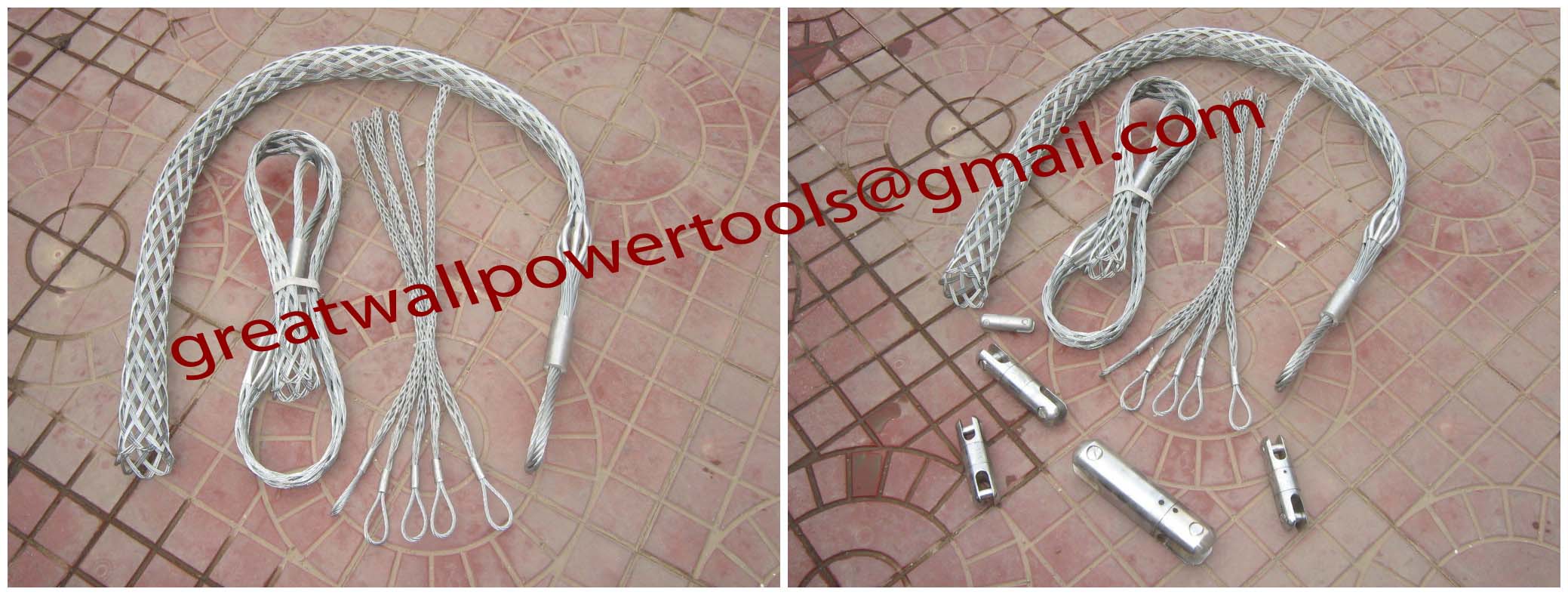

Cable Pulling Grips,Conductive StockingsPulling grips Styles and Applications
1.Medium duty pulling grips are double weave for added strength with greater mesh contact on the cable to handle longer or heavier pulling jobs.Cable Pulling Grips,Conductive Stockings
2.light duty pulling grips are single weave with a flexible eye for easy attachment to a pulling line. Cable Pulling Grips are used in general underground electrical construction where pulling tensions are low.
3.slack pulling grips are made of galvanized steel and come in three styles with a single offset eye for easy attachment to a pulling line. cable socks Closed, when the cable end is accessible, split lace and rod closing when cable end is not accessible. Cable grip are used in pulling slack for final placement of underground cable after Cable Pulling Grips has been pulled and longer mesh for higher pulling loads where space is not restricted.Cable Pulling Grips,Conductive Stockings
No. Applicable diameter Rated load Length
Scd-01 6-13mm 900 kg 300 mm
Scd-02 12-19mm 1590 kg 550 mm
Scd-03 19-25mm 2120 kg 600 mm
Scd-04 25-38mm 2560 kg 700 mm
Scd-05 7-12mm 300 kg 315 mm
Scd-06 13-18mm 400 kg 365 mm
Scd-07 18-24mm 600 kg 365 mm
Scd-08 25-35mm 700 kg 465 mm
Scd-09 35-48mm 1100 kg 535 mm
Scd-010 49-60mm 2000 kg 715 mm
Scd-011 60-75mm 2000 kg 830 mm
Scd-012 75-90mm 2500 kg 930 mm
Scd-013 90-115mm 2500 kg 1045 mm
Scd-014 110-135mm 3000 kg 1170 mm
Scd-015 130-150mm 3000 kg 1295 mm
















Cable Pulling Grips,Pulling grip,galvanization Cable grip,manufacture cable Pulling Grips,factory Wire Cable Grips.Cable Pulling Grips,Conductive Stockings
