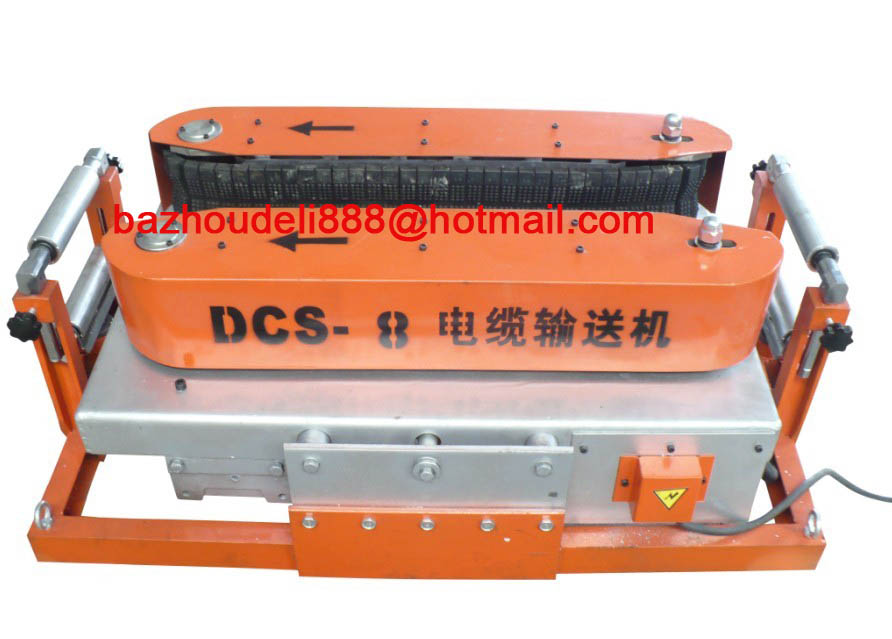

Cable Pusher,Cable Laying Equipment - 04

Cable Pusher,Cable Laying Equipment ,cable conveyor

The 20kN top-mount version is designed to grip cable from 50 –140mm in diameter and push (or pull) it by driving it through two caterpillar tracks that grip the wall of the cable with rubber shoes. Using an electrical control pendant, the operator has full remote control of the pusher. This pendant is connected to the unit by 5 metres of cable allowing the operator to observe and control the cable pusher from an optimum vantage point. All parameters of the pusher are adjustable to give the machine the largest possible envelope, maximise its versatility and ensure that cables are not damaged through bruising or buckling.
Cable Conveyor is a kinds of power cables /communication cable electrical laying machinery.
Cable conveyor adopt reasonable slow-down structure,which process stable speed,constant traction feature and can add intelligent control device so that fulfill fixed speed and fixed torque digital control.
cable conveyor is a kind of cable laying traction equipment sets .It consists of
traction head and up frame,etc.

It not only applied for traction power cable,communication cable and aerial wire,also for other tranction fields.It can be used alone or coordinated with our company other conveying sets.
Model No. Motor Power (KW) Convey Diameter(CM) Rated Force(KN) Pull linespeed
(M/MIN)
DCS-3 0.75X2 40-140 3 8
DSC-5 1.1x2 40-160 5 8
DSC-5B 1.5X2 40-180 8 8
Cable Diameter Max. Adjustable clamping force ≤2.7KN
Specification DCS-3 DSC-5 DSC-5B
Dimension 880X500X400 980X500X420 1018X500X420
Weight(kg) 168 198 208
