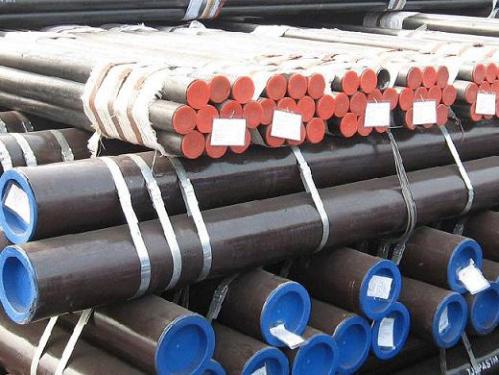

Carbon Steel Pipes with Seamless Tubes API5L - seamless steel pipe Specificaton & Trade Terms
Model | seamless steel pipe |
---|
Place Of Origin | TIANJIN CHINA |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Usage:Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.Standard:API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213, SA335, DIN17175, ASTM A179… Out Diameter:1/8 – 30 inch (10.3-762mm)Wall Thickness:0.049” – 2.5” (1.24- 63.5mm)Length:Random Length, Fixed Length, SRL, DRL Steel Grade:API 5L: GR B, X42, X46, X56, X60, X65, X70
ASTM A53/A106: GR A, GR B, GR C
ASME SA106: GR.A, GR.B, GR.C
ASME SA192: SA192
ASME SA209M: T1, T1a
ASME SA210: GR.A-1, GR.C
ASME SA213: T2, T5, T9, T11, T12, T22
ASME SA335: P2, P5, P9, P11, P12, P22, P91
DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44Heat treatment:Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and TemperedDelivery Condition:BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C
