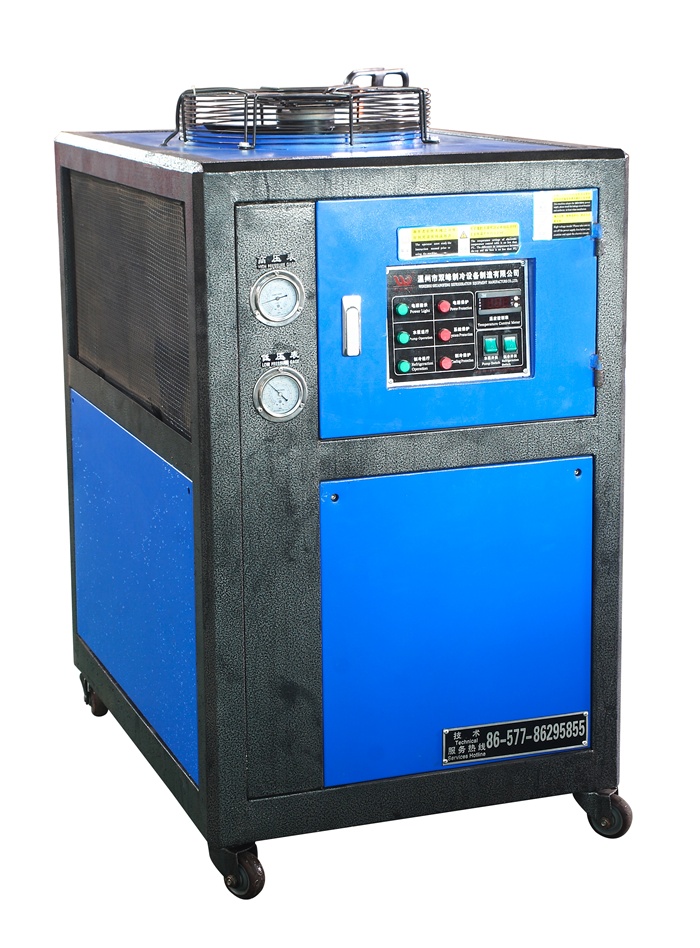

Cold Water Machine - HTL-5F Specificaton & Trade Terms
| Model | HTL-5F |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
APPLICATION AREA:
The cold water cooler series are applied to cooling thermal insulation absorption plastic heat former partly, and cooling and forming of shaped products, and also applied to used as cooling equipments for injection moulding machines, hydraulic presses, foaming machines, electric coating, dies, leathers, eyeglasses, lasers, printing, etc.
FUNCTION:
The products series adopt microcomputer control and are equipped with an automatic error diagnostic alarm. The system adopts imported parts to have the complete machine run stably and reliably with lower trouble, stronger cooling and lower noise in performance.
TECHNICAL PARAMETER
Model: SH-3F SH-5F SH-8F SH-10F
Cooling Volume W 8420 14285 22358 142276
Kcal/Hr 7250 12300 19250 122500
Btu/Hr 28768 48806.4 76384 486080
Input Power: 2.8kw 4.2kw 6.7kw 8.3kw
Power Supply: 3PH-380V / 50HZ
Cooling Blower: 0.25×1kw 0.25×2kw 0.25×2kw 0.25×2kw
Refrigerant : R22（404A）
Volume of Water Box: 68 85 135 135
Flow of Freezing Water 30 45 75 75
Temperature : ≤45℃
Note: The above technical parameters are applied to the ambient temperature 35℃ and water temperature 20℃. Please excuse the further technical improvement and other alterations without further notice
