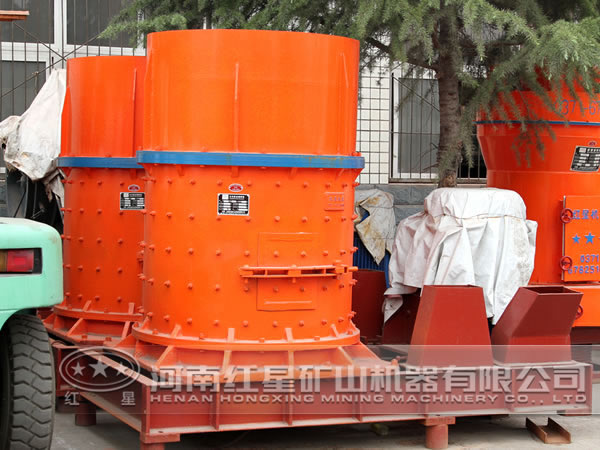

Combination Crusher - Refer to specifications

Combination Crusher----high quality

FOB Price:US $4,904 - 49,400 / Set

Port:Qingdao,Tianjin,Shanghai or others

Minimum Order Quantity:1 Set

Supply Ability:100Sets per month

Payment Terms:L/C, D/A, D/P, T/T, Western Union

Quick Details

Condition:New

Type:Combination crusher, crusher

Capacity(t/h):Refer to specification

Place of Origin:Henan China (Mainland)

Brand Name:Hongxing

Model Number:Refer to specification

Certificate:ISO9001:2008

Application:Ore

Color:Orange

Warranty:1 year

Hongxing series crushers are rated as 'China Famous Brand' for superb performance. In addition, Hongxing crusher ranks high in the China Top Ten Crushers list.

Packaging & Delivery

Packaging Detail:Standard container, bare main machine, motors and small parts are packed in wooden cases.

Delivery Detail:25 Working days after placing the order

Specifications

Combination Crusher Details:

Suitable for primary and Secondary crushing

Low power consumption

Easy maintenance

Combination crusher is also referred to compound cone crusher, which is a new fine and coarse crushing product that combined domestic and foreign similar crushing technology and optimized main technical parameters. It is mainly used in the medium cement plant for crushing cement raw material and cement clinker, which provides ideal fine crushing equipment for the cement plant to do technical transformation or build a new cement production line.

Combination crusher is mainly composed of gearing, spindle, barrel, upper cover, base and other components.

The Characteristics of Compound Crusher

1. The machine has the features of big reduction ratio and adjustable discharging size. It doesn't affect by hammer board and liner wearing;

2. No grizzly bar setting, high crushing moisture content, thus the large silt content materials is not easy to plug.

3. Adopting elastic adjusting mechanism, the materials that can't be crushed can automatic discharge and don't damage the equipment

4. Horizontal bearing arrangement, long service life, and can crush high temperature material (such as cement clinker).

5. The rotor block of the compound crusher is uniquely designed. When crushing materials, the rotor block is hardly worn. The back cavity is provided with a screw or hydraulic opening mechanism, and it's easy to replace the wearing parts without opening the master device.

The Illustration of the Working Principle

The materials vertically falls into the high speed ration impeller through the upper combination crusher, under the impact of high-speed centrifugal force and together with another part shunting in the umbrella form around the impeller, and thus producing impact and crushing. After the materials being collided with each other, they will be crushed by multi-colliding and friction between the impeller and casing in the form of material vortex, the materials will be straightly discharged through the bottom, forming a closed multiple cycles for the purpose of achieving the required finished size that controlled by the screening equipment.

Henan Hongxing Mining Machinery is a professional manufacturer that specializes in compound crusher and compound cone crusher. We can optimize the main technical parameters of the equipment according to the customers' requirements and the actual condition. This machine has absorbed the advantages of both the impact crusher and hammer crusher, which is the preferred equipment of the crushing production line and sand making production line.
