Cotton (CC) Conveyor Belt - 003

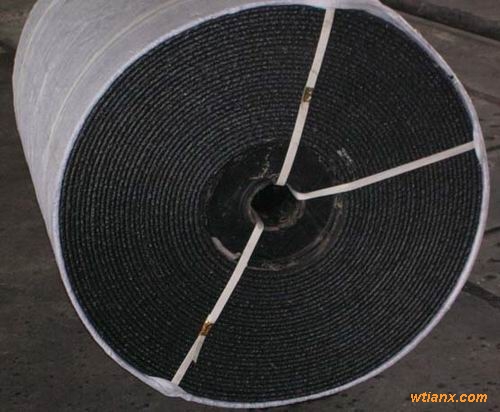

Cotton (CC) Conveyor Belt

 Cotton canvas is woven by cotton fibers both in warp and in weft, its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.
 Cotton conveyor belt has relatively small deformation under high temperature condition, suitable for short-distance and light-load transportation of materials.
 Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft.
 Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and thus the belt lighter, the belt can reduce energy and material consumption for users.
 It is the ideal selection for medium, short distance and medium-load transportation of materials.

Specifications available:
Carcass Fabric Structure Type No. of Plies Cover Thickness (mm) Belt Width (mm)
Warp Weft Top Bottom
NN Cotton Cotton CC-56 2-6 3.0-18.0 1.5-10.0 300-5000
TC Polyester Cotton TC-70
