DRV Worm Gearbox - DRV Worm Gearbox Specificaton & Trade Terms
| Model | DRV Worm Gearbox |
|---|
| Place Of Origin | china |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Model: Double Worm Gearbox
Categories: Worm Gear Reducer
Description:

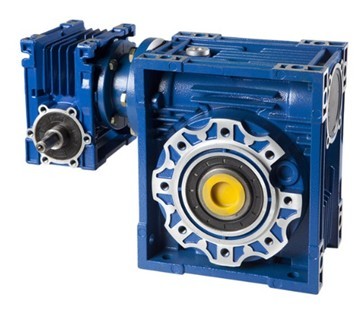

DRV WORM GEARBOX / DOUBLE WORM GEARBOX
To meet a high ratio also high torque, we afford a combined double worm gearboxes, and available model as below:
RV030/040, RV030/050, RV030/063, RV030/075, RV040/050, RV040/063, RV040/075, RV040/090, RV050/063, RV050/075, RV050/090, RV050/110, RV063/090, RV063/130, RV075/110, RV075/150
Available AC motor power from 0.06kw to 7.5kw
Available two worm gearbox models as below:
NMRV, which means hole input with input flange.
NRV, which means shaft input without input flange.
Available product Central distance: 025/30/40/50/63/75/90/110/130/150
Gear ratio: 7.5/10/15/20/25/30/40/50/60/80/100
Material: Alu. Casting(NMRV025-NMRV090), Iron casting(NMRV110-NMRV150), Tinbrone worm wheel, 40CrMoTi worm
Color: RAL5010 BULE, SILVER.
