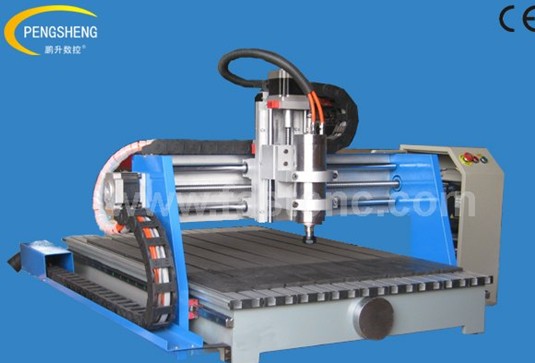

Description Of Desktop mini cnc router PC-6090 - PC-6090

Desktop mini cnc router PC-6090 - PC-6090 Specificaton & Trade Terms

ModelPC-6090
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Feature:
1. Whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2. The Spindle equipment is the first brand of the world, China domestic made water cooling spindle.
3.The machine adopts gantry movement,it can process any kinds of materials freely.
4.Three axes adopt imported ball screw and cirle orbit,stable working,high precision and long life time.
5. X ,Z axes are dustproof.It makes sure the steady working performance of the machine for long-term using.
6. Well compatibility:CAD/CAM designing software e.g.
   Type3/Artcam/Castmate/Wentai etc.
7. Has the function of forecasting process time.
8. High precision,the curving and linear speeds are consistent. Adopting excellent parts makes the fault rate to be the lowest one.
Technical Parameter:
Model PC-6090
X.Y working area 600mm*900mm
Z working area 80mm
Table size 750mm*1100mm
Resolution 0.05mm
X,Y structure Taiwan ball screw
Z structure Taiwan ball screw
Max speed 10m/min
Spindle power 1.5 KW /2.2KW/3KW
Spindle rotating speed 0-24000r/min
Cooling mode Water Cooling/Air Cooling
Working voltage AC220V/50/60 Hz ,2PH
Drive Motor Stepper
Command G code*.u00*.mmg*plt
Operating system NC Studio
Diameter of cutter 3.175-12.7
Work-holding By clamp
Applicable industries:
Wood processing:processing of various furniture such as door,window,cabinet,craft wood door,
screen and so on.
Advertisement:engraving and cutting various labels and number plate.
Art craft:engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood,aluminum board,plastic,density board,wave board,PVC,acrylic,crystal,light marble and other
nonmetal materials and light metal materials.
