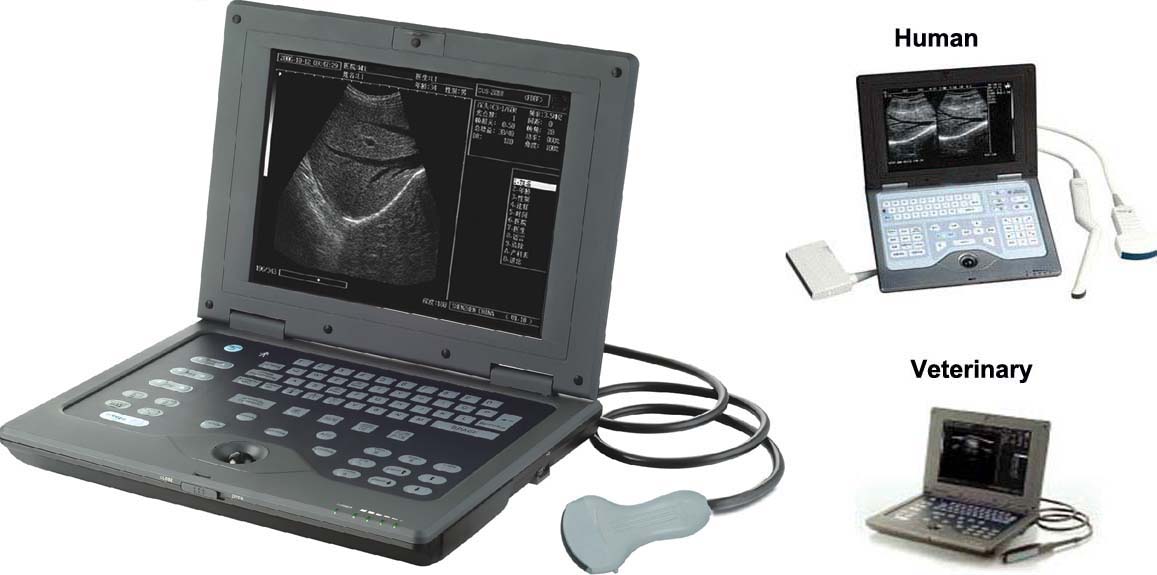

Digital Notebook Ultrasound Scanner - WHYB2018

Full digital technology
Probe automatic identification
Ergonomic design, user-friendly
Wide clinical applications: abdominal, obstetrics, gynecology, pediatric, trans-vaginal, trans-rectal, veterinary and so on.
USB 2.0 for real-time picture uploading to PC
Human being or Veterinary software optional

Technical Specification:
Scanning: Convex, linear
Display Mode: B,B+B,B+M,M,4B
Gray Scale: 256 levels
Display: 10.4" TFT color LCD
Image Procession: DFS, DRF, RDA,VGA/DSC and image pre & post
Cine-memory: 206 frames (human),256 frames(vet)
32 image permanent storage
Multi-step Zoom (1:2) in both real-time and frozen modes
Focusing selectable
Depth adjustable in real-time of B and B+B mode
Image Conversion is U/D,L/R and B/W.
8 different coded-color on a external color monitor
15 different kinds of body marks
Measurement is in Distance ,Circumference/Area, Heart Rate、EF rate for heart, and GS,CRL,BPD,HC,FL,AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
Characteristic showing in real-time clock, ID, Sex, Age, Focusing info and Hospital Name

Standard configuration: 3.5MHz convex probe
rechargeable battery
AC adaptor
Metal case
USB dirve disk etc.
Optional accessories:
1). 7.5MHz linear probe
2). 6.5MHz transvaginal probe
3). 7.5MHz endorectal linear probe
4). 5.0MHz micro-convex probe
5). video printer
