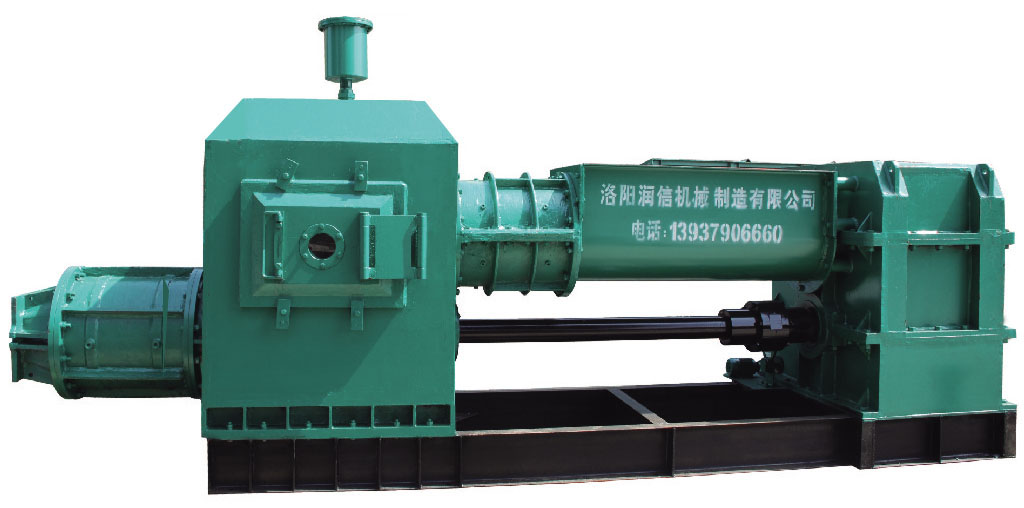

Efficient and compact model vacuum extruder - JKB(SJ)/JKR(SJ) Specificaton & Trade Terms
| Model | JKB(SJ)/JKR(SJ) |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work,FOB,CIF,etc. |
|---|
| Payment Term | T/T,L/C |
|---|
The JKB(SJ)/JKR(SJ) series vacuum extruder’s main part is welded with extra fine steel. The double grade both are droved by one motor which have features of compact structure, high pressure extrusion, high vacuum, sturdy and durability and easy maintenance but lower energy consumption. They are the perfect equipments for medium size brickfield and small size brickfield because of only small investment. They are applicable for all kinds of solid bricks, bearing cork bricks and high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.
Main technical data
Type Measuring unit 50/50-3.0 45/45-2.0 40/40-2.0 35/35-1.5
Production capability standard brick packs/h 14000-18000 12000-16000 10000-14***00
Reamer diameter （mm） 500 450 400 350
Extruding pressure (MPa) ≤3.0 ≤2.0 ≤2.0 ≤1.5
Forming liquid water content % 18～22 18～22 18～22 18～22
Vacuum (MPa) ≤-0.092 ≤-0.092 ≤-0.092 ≤-0.092
Power (Kw) 132～160/15 90～110/15 75～90/15 55～75/15
