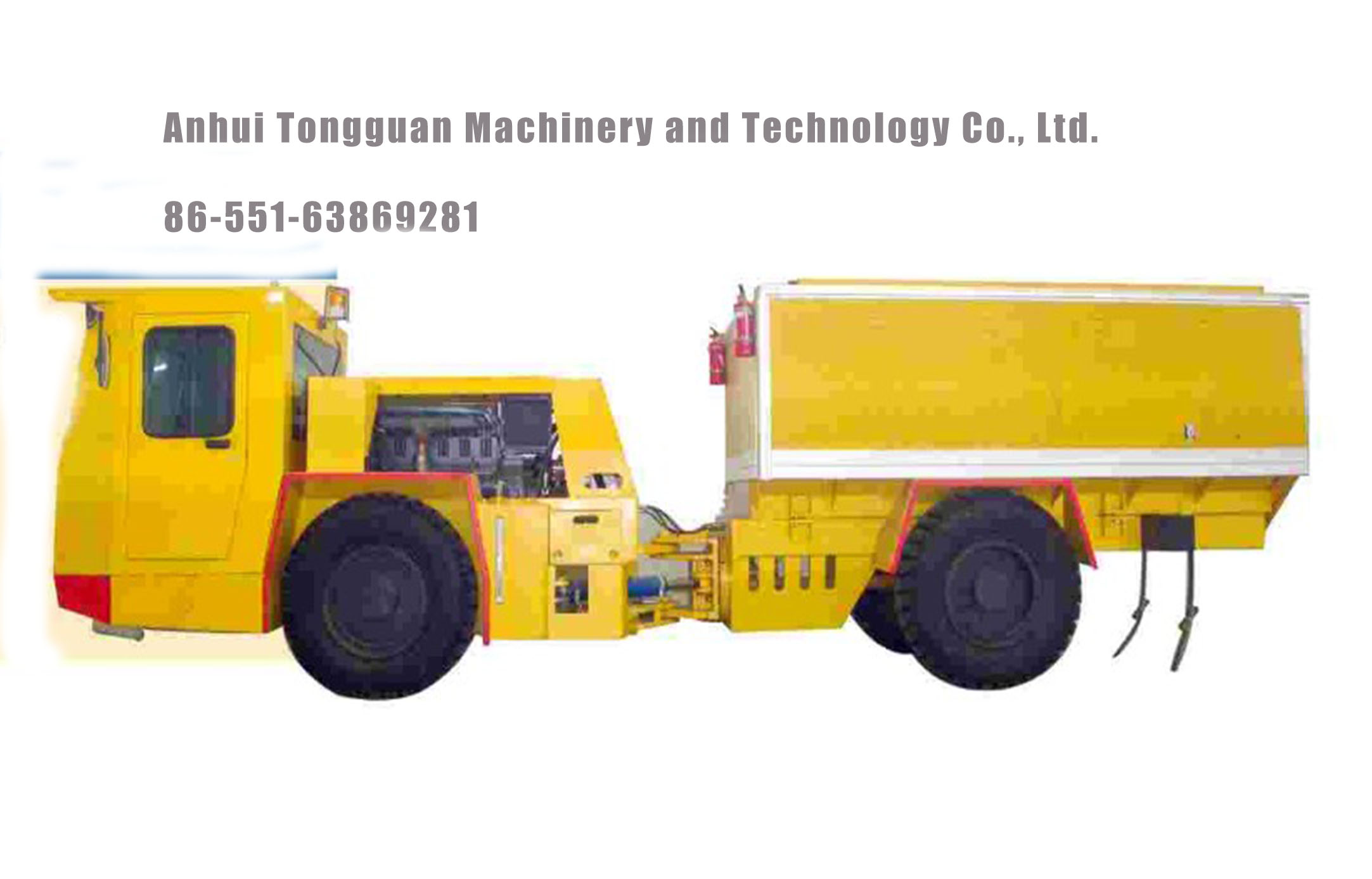

Explosive transport vehicle - JY-5ZY

All Dimension:length/width/height7300*1800*2140(mm)

Turning Radius:Inner3800(mm)Outer6000(mm)

Empty weight:7500KG

Rate load:3500KG

Tank capacity:5m3

Fuel Type:Diesel

JY-5series of underground service vehicles have the same specification

as below.


Main Features
1,Applied two-stage combustion with lower pollution.Equipped with air

cooling system,meatal catalytic purifier and muffler.Discharger

exhaust contains extremely low amount of harmful substance which is

far below the requirements of "GB 14761.5/6/7".
2,Working brakes are separately mounted on both of the two drive

axles.Braking system applied individually double-piped hydraulic

controlling.
3,Since the main power system,transmission components and hydraulic

components are from famous brand holding foreign manfacturers ,and the

other components are also hhigh--quality products from our finest

domstic manufacturers,our machine is greatly excellent and reliable in

performance.

Main configuration
Diesel engine:Germany DEUTZ F6L912W
Torque converter and shift transmission :US DANA 1201FT20321
Axle:US DANA F112
Twin gear pump:Italy sailami 2.5PB
Valves:US Mico

Working condition: The mchine is suitablle for un-coal mine.
Empty weight:6t
Rate load:5t
standard Bucket Capacity:3m2
maximum dumping height:1600mm
minimum unload distance:1480mm
Distance between wheels:1530+-40mm
Steering Angel:+-10degree
RotationAngel:+-40degree
Grade ability:25%
Turning radius:Inner 3800mm/Outer 5900mm
Speed Gear1:4.8km/kh Gear2:10.0km/h Gear3:22.0km/h

We plan to help you meet your needs with our equipment, with our

distribution and product support system, and the continual

introduction and updating of products.
