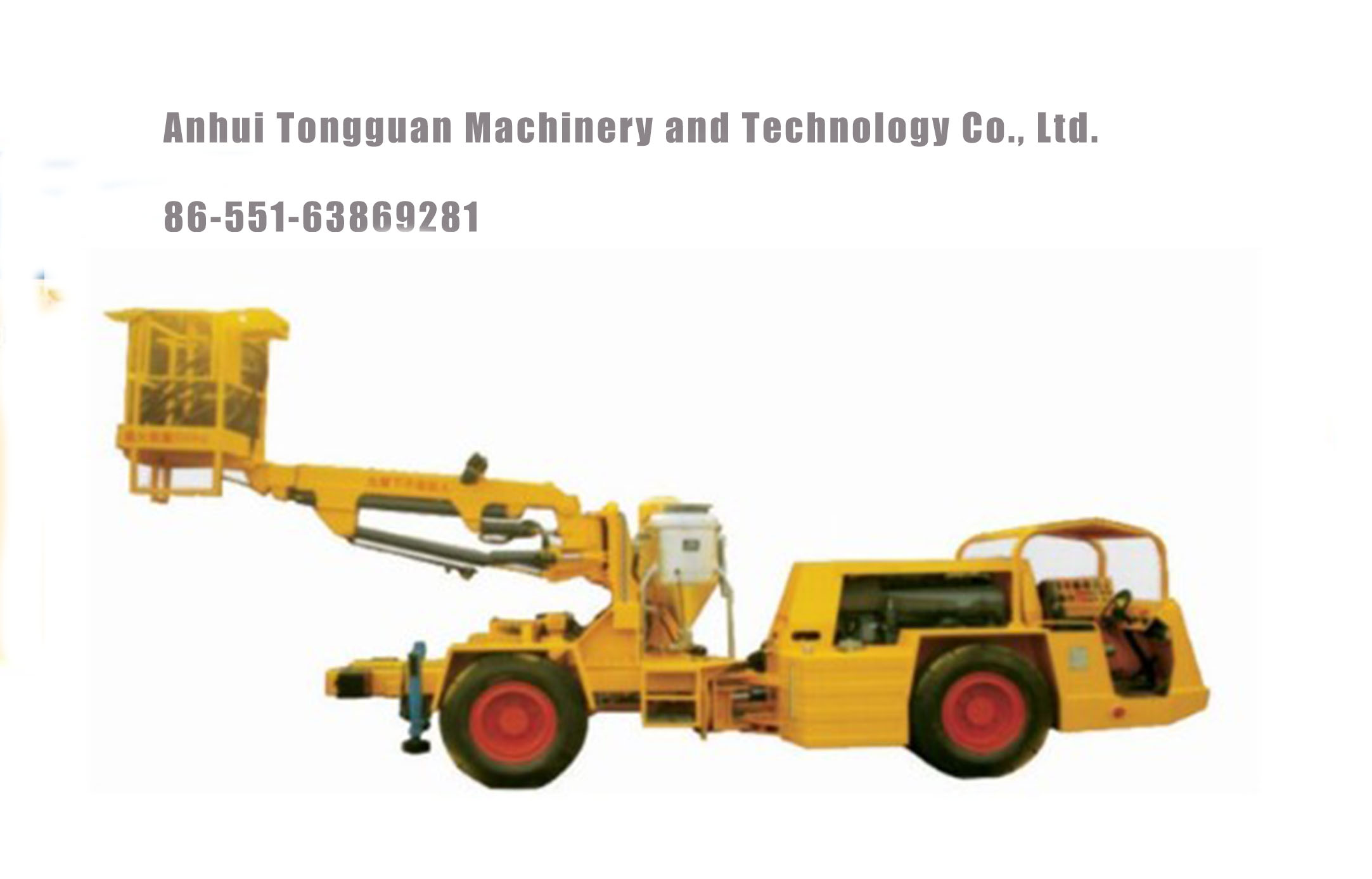

Explosive vehicle - JY-5ZY-1

General Specifications
Style :JY-5ZY-1
All Dimension:length/width/height7860*1800*2260(mm)
Vehicle Turning Radius:Inner3800(mm)Outer5900(mm)
Empty weight:8300KG
Rate load:500KG
Platform area:1200*800(mm2)
Max lift height:5.3m
Arm Turning angle:30degree or 2.3m(left and right)
Explosive container:100KG
Hose inside diameter:25 or 32(mm)
Fuel Type:Diesel

JY-5series of underground service vehicles have the same specification

as below.


Main Features
1,Applied two-stage combustion with lower pollution.Equipped with air

cooling system,meatal catalytic purifier and muffler.Discharger

exhaust contains extremely low amount of harmful substance which is

far below the requirements of "GB 14761.5/6/7".
2,Working brakes are separately mounted on both of the two drive

axles.Braking system applied individually double-piped hydraulic

controlling.
3,Since the main power system,transmission components and hydraulic

components are from famous brand holding foreign manfacturers ,and the

other components are also hhigh--quality products from our finest

domstic manufacturers,our machine is greatly excellent and reliable in

performance.

Main configuration
Diesel engine:Germany DEUTZ F6L912W
Torque converter and shift transmission :US DANA 1201FT20321
Axle:US DANA F112
Twin gear pump:Italy sailami 2.5PB
Valves:US Mico

Working condition: The mchine is suitablle for un-coal mine.
Empty weight:6t
Rate load:5t
standard Bucket Capacity:3m2
maximum dumping height:1600mm
minimum unload distance:1480mm
Distance between wheels:1530+-40mm
Steering Angel:+-10degree
RotationAngel:+-40degree
Grade ability:25%
Turning radius:Inner 3800mm/Outer 5900mm
Speed Gear1:4.8km/kh Gear2:10.0km/h Gear3:22.0km/h
