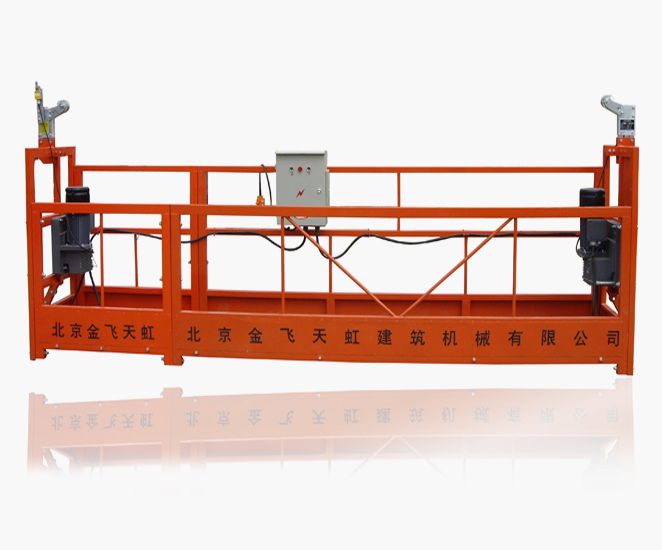

Factory ZLP800 Steel Hanging Platform - ZLP800 Specificaton & Trade Terms
| Model | ZLP800 |
|---|
| Place Of Origin | Tianjin Port, China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
ZLPSteel Hanging Platform
1. Anti-tilting safety device
2. International approvals
3. Competitive price
4. Manufacturer
ZLP250, ZLP500, ZLP630, ZLP800, ZLP1000 Steel Hanging Platform
ZLP Special Shape Steel Hanging Platform
A. Introduction of ZLP Steel Hanging Platform
ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level buildings and exterior construction such as cement coating, veneering, installing the glass on curtain walls, painting as well as cleaning and maintenance. It also can be applied to the operation of big vessels, bridges and dams, etc.
B. Features of ZLP Steel Hanging Platform
1. Safety rope and safety lock
When the platform tilts, the hoist system automatically acquires major faults; Meanwhile, the safety locks will block the wire ropes to ensure the safety of the operator and workers.
2. Combination of the bottom platform
According to customers' defferent requirements, the platform can be combined in different shapes such as U-shape, circle-shape, fan-shape, etc.
3. Convenient and reliable electric constrol system
The electric control system is equipped with protection switches; operators can choose single- machine operation or two machine operation system. It is equipped with movable operation box, external power box and up limitor which can prevent against going upward dangerously.
4. Reasonable designed structure and attractive appearance.
The steel structure applies thin-wall of rectangle steel pipe, compact and rational designed.
C. Advantages of ZLP Steel Hanging Platform
1. Both the working height and the platform size can be adjusted on customer need.
2. The voltage and frequency can be changed according to different countries conditions.
3. The material of the suspended platform can be determined by customer: Steel of Aluminum Alloy.
4. The aluminum alloy suspended platform is 65% lighter than the same model of steel one.
5. The film of the ZLP suspended platform is anti-corrosion
