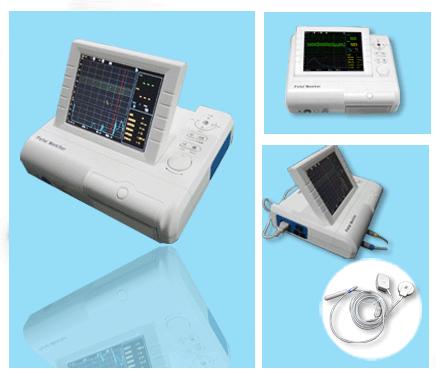

Fetal Monitor - CMS800G

Feature:

CMS800G Fetal Monitor can provide different configurations according to different user
requirements: FHR1(Ultrasonic Channel Ⅰ), FHR2 (Ultrasonic Channel Ⅱ),TOCO, FMOV (Fetal Movement Marker).Monitoring results can be recorded by built-in recorder for
continuous or intermittent records. The monitor can be used individually or connected
Interface for the purpose of central monitoring.


■ Compact and portable design, can be put on table or wall mounted

■ 8.4" color LCD screen display which can be rotatable up to 60°

■ Display of the patient data and curve clearly

■ Can record fetal movement manually

■ High and low fetal heart rate alarm function

■ Continuous 24-hour real-time monitoring function

■ Continuous 12-hour patient curve and data storage with playback ability

■ With picture freeze function

■ Chinese and English operation interface selectable

■ Single, Twins Monitoring selectable

■ 9 chip pulse width beam probe

■ Extra-long life, high-resolution built-in thermal printer which can output

waveform, text, and other information

■ Built-in RJ45 communication interface, can be connected with central monitoring system

Specification:





Optional：Twins monitoring ultrasound probe FHR2



Ultrasound probe nominal frequency:1.0MHz

FHR Range：65BPM～210BPM； Accuracy:±2％

AC power supply voltage：AC100V～240V ；Working Frequency:50Hz/60Hz

TOCO Range: 0～100％ ；Resolution:1％

Fetal marking: Manual push button（Operated by pregnant women）
