Fiber Curing Oven - HK-40K

Fiber Curing Oven - HK-40K
:
Homk Telecommunication Technology Co.,Ltd.
: 2012-12-18 22:37:37
:
Fiber curing oven,optic curing oven,curing oven,op

Inquiry Supplier / Manufacturer
Description Of Fiber Curing Oven - HK-40K

Fiber Curing Oven - HK-40K Specificaton & Trade Terms

ModelHK-40K
Place Of OriginChina
BrandHomk
Gurantee1 year
Price TermEX-Work
Payment TermT/T
Supply Ability5000
Minimum Order1
Loading PortsShenzhen
Delivery Timein stock

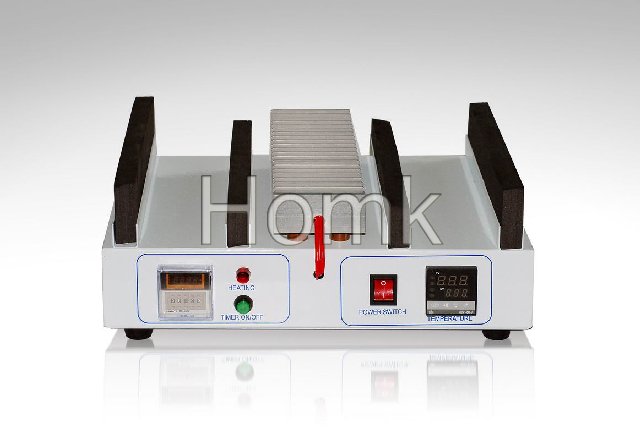

Fiber curing oven
1. This fiber curing oven uses Liquid Crystal Display (LCD) to be clear, the contact surface is friendly.

2. The fiber curing oven is suits in fiber connector manufacturer, fiber curing oven uses in curing epoxy of fiber connector& ferrule
Such as FC, SC, LC, MU, MT, ST, E2000, MPO, MTRJ etc.

3. The fiber curing oven can inserts core 80 ceramic ferrule, may also curing oven 40PCS of the integral-type connector.

4. The fiber curing oven temperature and the time establishes freely, the temperature control precision is high, Precise control system, adjustable temperature 0~300degree, temperature control accuracy to +- 1 degree only. And this fiber curing oven control the heating time by designation. The fiber curing oven easy to use and dependable.

5. Curing tooling can be replace, simple operation, this fiber curing oven suitable for curing epoxy resin of various joints, improve production efficiency.

6. According to customer needs, the fiber curing oven customized with different core number and size of the curing tooling heating.

1 Technical parameters Specification
2 Heating Temperature 40-200degrees
3 Dimensions 400*320*160mm
4 Weight 7.0kgs
5 Input Voltage 100-120VAC/200-240VAC
6 Power Consumption 800W
7 Automatic Yes
8 Making Method of Parison PLD
9 Type Full-Electric Controlled
10 Warm up Time(Apporox) About 15min
11 Type of production 1.25mm, 2.5mm, SC/FC/ST/LC/MPO/MTRJ all kinds of connectors
12 Capacity 40-80connectors
13 Material Stainless Steel
14 Outer Case Baking Paint for Metal
15 Style Horizontal
