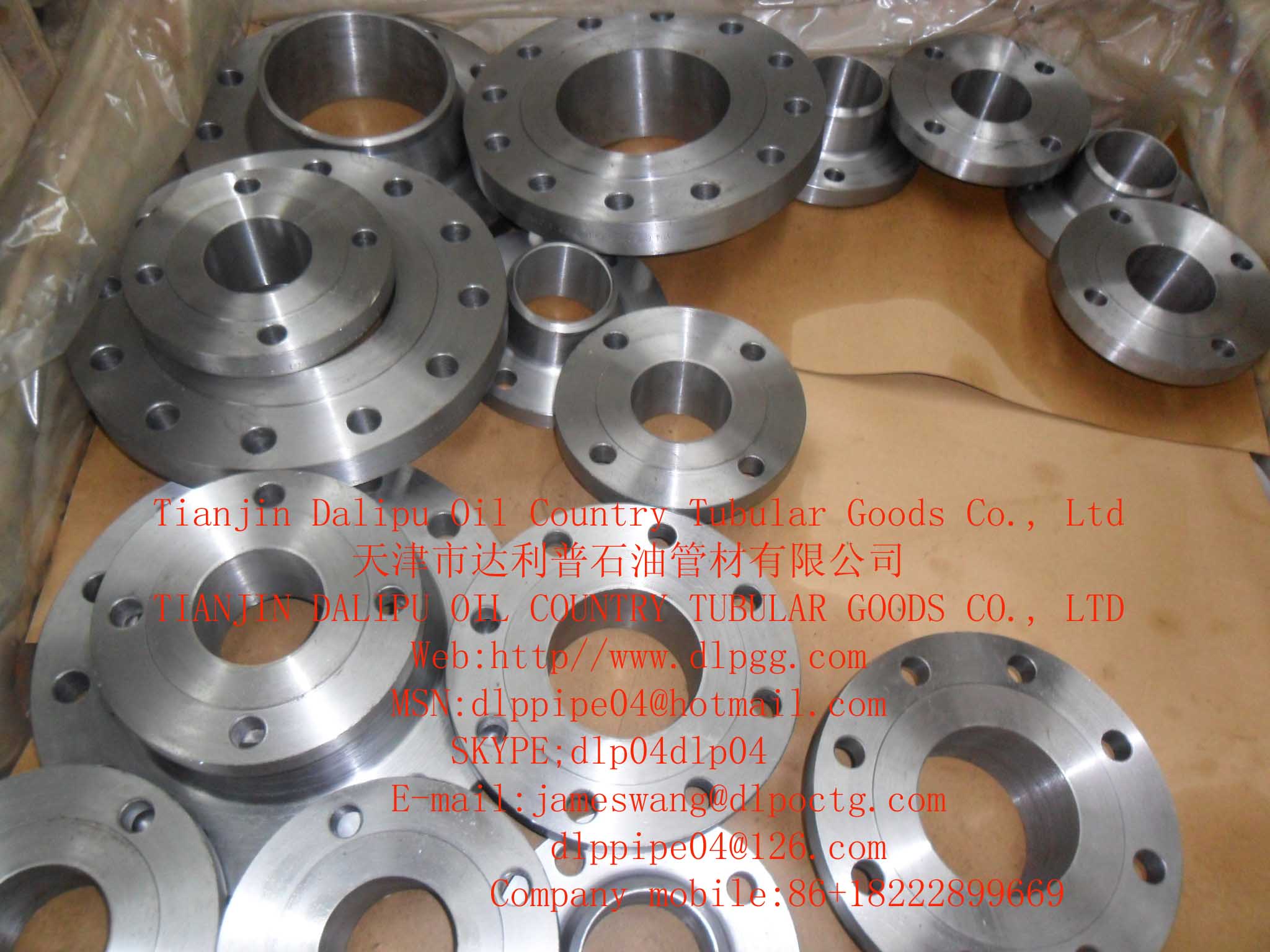

Flange WN, RF ASTM A105N Sch.40, - Flange WN Specificaton & Trade Terms
| Model | Flange WN |
|---|
| Place Of Origin | CHINA |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Flange with nuts and bolts WN, RF ASTM A105N Sch.40,
8"300# ,Flange with nuts and bolts WN, RF, ASTM A 105N, Sch.40, ASME B16.5, With Gasket ANSI B16.20, Spiral Wound, 304SS, Stud bolt with nuts, ASTM A193 Gr. B7 / A194 Gr. 2H
FLANGE: BLINDPIPE SIZE: 114MM (4")CLASS RATING: 300LBFLANGE FACE: RAISED FACESPEC: A105NMATERIAL: CARBON STEEL
FLANGE :WELD NECKPIPE SIZE :88MM (3")CLASS RATING :1500FLANGE FACE :RING TYPE JOINTPIPE SCHEDULE :80/XS/80SSPEC :A105N
GASKET: RING JOINTRING TYPE: RRING SHAPE: OVALFLANGE SIZE: 3"PRESSURE RATING: CL 1500RING NUMBER: R35MATERIAL: SOFT IRONMATERIAL IDENTIFICATION: DMANUFACTURING STANDARD: ASME B16.20
BOLT STUD :THREAD SIZE :1-1/8"THREAD FORM :8UN LENGTH :7"BOLT MATERIAL SPECIFICATION :ASTM A193 GR B7NUMBER OF NUTS :2NUT MATERIAL SPECIFICATION :ASTM A194 GR 2HFINISH :BLACK
FLANGE: WELD NECKPIPE SIZE: 88MM (3")CLASS RATING: 1500LBFLANGE FACE: RAISED FACE0PIPE SCHEDULE: 80 SPEC: A105N
GASKET: SPIRAL WOUNDPIPE SIZE: 3"CLASS RATING: 1500FILLER MATERIAL: GRAPHITEINNER GUIDE RING MATERIAL: 316SSMANUFACTURING STANDARD: ANSI B16.20/API601
THREDOLET: 1” X 3” -36” ANSI 3000 NPT material : ASTM A105N MATERIAL CARBON STEEL
BOSS: WELDINGNOMINAL PIPE SIZE: 1"CLASS RATING: 3000LBTHREAD: FNPTMANUFACTURE: FORGEDMATERIAL GRADE: ASTM A105NSPECIFICATION: ASME B1.20.1MATERIAL: CARBON STEEL
