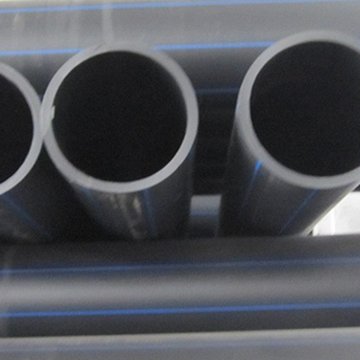

HDPE pipe/PE100 - pe pipe

HDPE pipe/PE100
Features:
1.Material: high Density Polyethylene
2.sizes: 20mm to 800mm
3.Connection: socket fusion, butt fusion joint, electro fusion joint, flanged joint
4.Certification: ISO9001,ISO14001
5.Applications: Water supply, industrial liquids transportation and sewage treatment
Properties
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): =20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.

Advantages:
1.Non-toxic: No heavy metal additives would not be covered with dirt or contaminated by bacterium.
2.Corrosion Resistant: Resist chemical matters or electron chemical corrosion
3.Lower installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
5.Longevity: More than 50 years under proper use
6.Recycled and Environment-friendly
Application:
1.Municipal water supply
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment.
