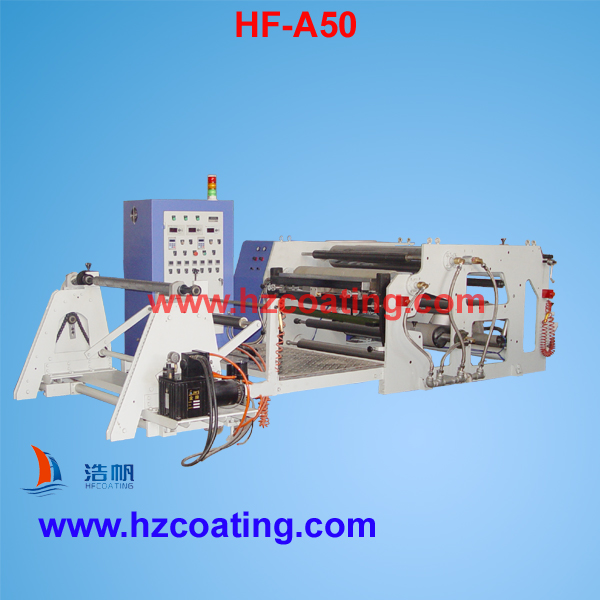

HF-A50 Hot Melt Coating Machine - HF-A50

This Machine is available to see running machine when you come China.

1.Application:

suitable for producing Double Side Tape,Duct Tape,Double Side Foam Tape,Cleaning Tape,Kraft Paper Tape,Masking Tape,Aluminum Foil Tape,Fiber Tape,Shoes Material,Medical Dressing Tape,Low temperature hot melt adhesive tape etc.

2.Main Feature

(1Main machine speed and amount of glue feeding is controlled by AC Converter,Which can be adjusted manually or automatically synchronous tracking.
(2)Adopt Intelligent PID temperature control system,error within 1°C.
(3)Glue melting box is coated with Teflon Non-sticky coating,effectively prevent the hot melt adhesive carbonization.
(4)Equipped with High precision Gear pump,make sure steady glue supply.
(5)High precision alloy coater head guarantee high quality coating effect.
(6)High effective Cooling device insure the application of basic materials.

3.Technical Parameters
Model HF-A50
Coating Width 400-2500mm
Coating Weight 10-200g/m2
Coating Speed 50m/min
Unwind Diameter 1000mm
Rewind Diameter 700mm
EPC 1 SET
Length 4800mm
Height 1350mm

4.Major technical parameters of the main production line

(1). Material used: hot melt pressure-sensitive adhesive
(2). Effective coating width: 1100mm
(3). Roller width: 1200mm
(4). Coating glue weight: 15~80g/m2, (by 40g/m2,±1g)
(5). Max.Mechanical Speed: 120M/Min
(6). Max.Coating Speed: 0~120m/Min
(7). Glue melting speed of the tank: 300kg/h EVA 165°C 3000CPS
(8).Unwinding style: adopts center shaft single work position and center unwinding 3”, Magnetic power brake,Japan Mitsubishi constant tension controller
(9). Maximum diameter: unwinding is Φ1000mm, rewinding is Φ1000mm
(10). Electrical control method of the complete machine:
PLC controller/ Siemens s7-200, 10”human-machine interface operation
(11).Temperature control method of the hot melt glue tank:
adopts Japan Mitsubishi or Omron temperature controller, digital display with temperature Exceeding alarm function, PID Intelligent adjustment, temperature control scope: 0-250 °C, model: AKT4112200
(12).Specification of the glue melting tank and its extruding amount:
The hot-melt glue tank adapts Al-alloys to casting and forming, divided into 3 layers: upper,middle and lower. The inner wall has coated with a layer of Teflon for preventing of sticky.Max. extruding amount is 300kg/h and the Max.volume is 600L, heating power is 45kw.
(13). Driving motor: AC frequency conversion motor/ gear reducer motor/ 3 phase asynchronous motor (Taiwan Chengbang, Shanghai Haozheng series)
(14). Frequency converter:
Digital AC vector control frequency converter. Japan Yaskawa made
(15). Paper core roller: Unwinding adopts of 3” inflatable style core.
(16). Power supply: three- phase, 380V 50Hz.
(17). Input power: Installed power rating 75kw (By normally using is 40kw)
(18). Cooling water: temperature is 16-25°C, flex is 8 cubic meter/hr. , water pressure is 2kg/square centimeters (will be prepared by demanding company)
(19). Compressed air supply: Air pressure is above 5kg pre square centimeters, (Will be prepared by demanding company)
(20). Heating method of the glue melting tank: Electric heating.
(21). Heating method of the die slot heads and the glue transfusion tubes: Electric heating.
