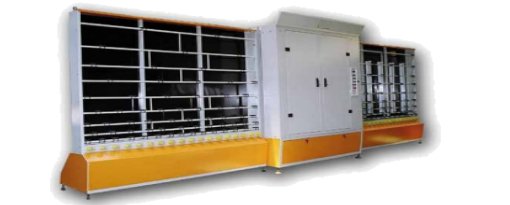

INSULATING GLASS WASHING MACHINE - NEW Specificaton & Trade Terms
| Model | NEW |
|---|
| Place Of Origin | TURKISH |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
GLASS WASHING MACHINERY
1700 AQUA
VERTICAL GLASS WASHING MACHINE
STANDARD SPECIFICATIONS
Open top, possibility to wash glasses higher than 1700 mm.
4 soft special spiral brushes also able to wash coated glasses.
Motorized vulcolan covered input and output wheels.
Temperature controlled hot water washing system.
Separated rinsing circuit and tank.
Stainless steel water tanks and pumps , most reliable brands .
Motor and gearbox most reliable brands.
Siemens electrical components.
24 Volt control panel in conformity with European safety regulations.
Robust body construction, electrostatic powder painting against corrosion.
No-trace supporting wheels specially designed for glass.
EPDM and polyurethane driving discs.
Transparent acrylic panels in washing section for water isolation.
Noise isolated body.
All components in contact with water made of non corrosive materials.
Perfect drying by specially designed nozzles.
The washing sensibility of coated glass .
Working direction from left to right or right to left upon request.
OPTIONS: Different heights available: 1300/ 1600/1700/2000
TECHNICAL FEATURES
Motor power: 16 kW 50 Hz 400V 3 NPE AC
Noise emission: 75dB (A)
Glass sizes: min. 170Χ350 mm / max. 1700Χ2700 mm
WxLxH: 1000x7335x2340mm
Weight: 1600 kg
