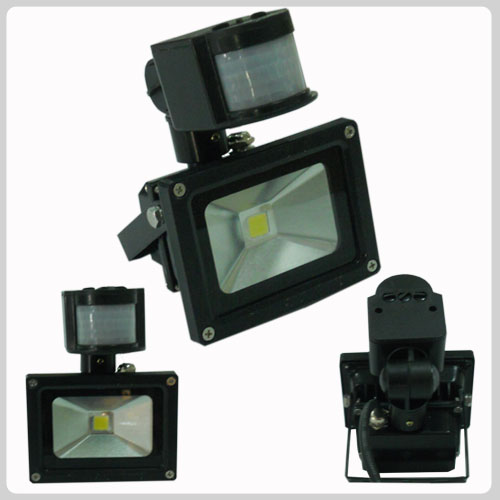

LED Floodlight-10W - 10w sensor Specificaton & Trade Terms
Model | 10w sensor |
---|
Place Of Origin | CHINA |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
LED Consumption 10W/20W/30W/50W
System consumption 12W/25W/35W/60W
LED Initial Flux "850-900lm/ 10W
1700-1800lm/ 20W
2550-2700lm/ 30W
4250-4500lm/ 50W"
Color Temperature 2700K-7000K
Power Factor >0.92
Total Hamornical Distortion 20%
Power Efficiency >91%
Illuminance(1M) "250Lux/500Lux/
750Lux/1200Lux"
Illuminance Uniformity >0.4
Color Rendering Index BW: Ra>68; CW: Ra>75
Beam Angle 120/45
Working Voltage DC:30-36V
Input Voltage AC 90-264V DC 24/36/48V
Frequency Range 50-60Hz
Junction Temperature ≤60℃
Working Temperature -40℃+50℃
IP Grade IP67
LED Life-Span 50000Hrs
Certificate CE Rohs
Material Alluminum Alloy + Glass
Packing Dimension "120*90*85mm/10W
180*140*100mm/20W
225*183*125mm/30W
290*240*150mm/50W"
N.W/G.W 2.17kg/2.37kg
