LSAW Steel Pipe - lsaw steel pipe Specificaton & Trade Terms
| Model | lsaw steel pipe |
|---|
| Place Of Origin | China |
|---|
| Packaging | export standard or as per your requirement |
|---|
| Brand | XINYUE |
|---|
| Gurantee | Third part inspection |
|---|
| Certifications | ISO9001:2008 |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 6000 metric ton / month |
|---|
| Minimum Order | 25 TONS |
|---|
| Loading Ports | Tianjin |
|---|
| Delivery Time | within 30-45 days |
|---|

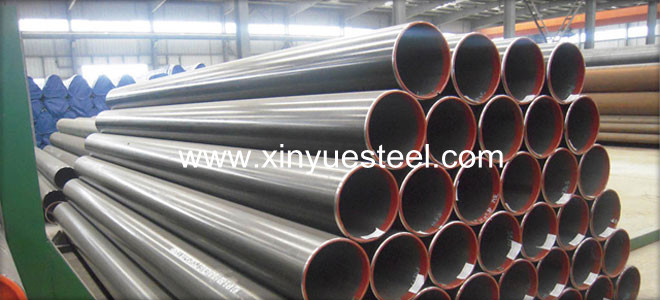

Longitudinal Submerged-Arc Welded Steel Pipe
Process:LSAW - UO(UOE)、RB(RBE)、JCO(JCOE,COE)
DSAW -Double Submerged arc welded
Standard:API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711
Certificate:API 5L PSL1 / PSL2, API 5CT
Out Diameter:219mm – 1820mm(8"-72")
Wall Thickness:5.0 - 50mm
Length:6 – 12m
Steel Grade:API 5L: GR B, X42, X46, X56, X60, X65, X70
ASTM A53: GR A, GR B, GR C
EN: S275, S275JR, S355JRH, S355J2H
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Usage:Used for low pressure liquid delivery, such as water, gas, and oil.
Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate:EN 10204/3.1B
Should you have any need pls feel free to contact us.
