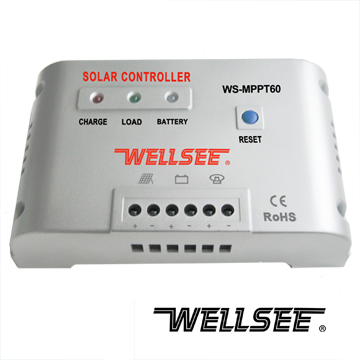

MPPT controller China manufactory - WS-MPPT60

This WS-MPPT Solar energy controller (also known as WELLSEE intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with standard solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. WELLSEE WS-MPPT solar controllers 10A--60A include 12V series, 24V series and 48V series.

MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system allows PV panels to output more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the working state of ordinary controller, that is PV battery working on 12V ,only outputting a power point of 53W (the general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputting the power point of 75W (the maximum power point).

Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration) ,
Lightning protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection

MPPT principle:
The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. With the intensity of sunshine being constant, the maximum output power decreases with the rise of the temperature. The temperature being constant, when the sunshine intensifies, the open circuit voltage of PV battery basically keeps unchanged. But the short circuit current increases substantially, thus the maximum output power increases substantially.

This WS-MPPT Solar energy controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.

However, due to many different factors, such as the difference in solar panel making, the change of the sun illuminance, change of temperature, the efficiency of the controller etc., the actually available increased rate is 10%-30%.
TECHNICAL INDEX:
Model WS-MPPT60 40A WS-MPPT60 50A WS-MPPT60 60A
Rated Voltage 12V / 24V / 48V
Max Load current 40A 50A 60A
Input voltage range 12V-20V / 24V-40V / 48V-80V
Length≤1m
Charge loop drop 0.25V
Length≤1m
Discharge loop drop 0.05V
Over voltage protection 17V / 34V / 68V
Full charge cut 13.7V / 27.4V / 54.8V
Low voltage cut 10.5V-11V / 21V-22V / 42V
Temperature compensation -3mv/°C /cell
No load loss ≤30mA
Max wire area 6mm2 6 mm2 6 mm2
Ambient temperature -25°C---+55°C
