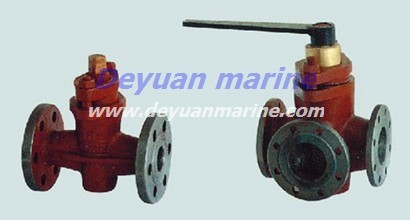

Marine Cast Iron Flanged Packed Cocks
China Deyuan Marine Fitting Co.,ltd are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API、ANSI,BS standard etc.Pls contact us for more details.
A type,L type,T type Dimensions
Dn
(mm) Structure dimension thickness flange Weight(kg)
L H≈ H1 D D1 D2 do b A type Ltype Ttype
20 145 141 42 7 95 68 48 13 14 3.01 3.85 3.79
25 155 151 43 7 105 73 56 13 14 3.84 4.8 4.8
32 165 170 50 7 115 83 64 15 15 4.7 5.7 5.6
40 190 193 57 7 125 93 74 15 16 6.6 8.4 8.3
50 205 245 67 7 135 103 84 15 16 10.2 12 11.8
65 225 286 81 8 155 123 104 15 15 13.4 16.7 16.3
80 245 328 100 8 170 138 118 15 15 19.7 21.8 21.3
More types can be offered,pls contact us for more details

&&&&&&:
