Description Of Marine Hydraulic Sliding Watertight Doors - 0b

Marine Hydraulic Sliding Watertight Doors - 0b Specificaton & Trade Terms

Model0b
Place Of Originchina
Price TermEX-Work
Payment TermT/T

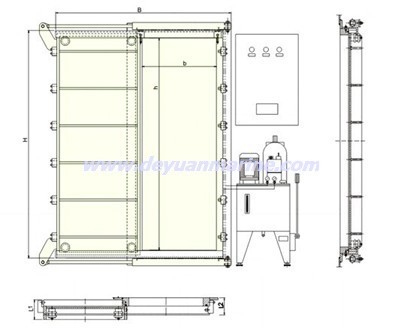

Marine Hydraulic Sliding Watertight Doors
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine outfitting equipment,such as marine steel doors,marine aluminum door,marine windows,marine hatch cover,marine pilot rope ladder,embarkation rope ladder,gangway ladder ,bulwark ladder etc.
This product applies to watertight gateways of engine room below waterline of ships and meets the regulations for the classification and construction of sea-going steel ships in 1987.
This product can be hand operated on both sides of the engine room,it is designed for three-directional operation of hydraulic piping.

Size of doorway
b*h Opening size
Of bulkhead B H L1 L2 Weight
(kg)
500*1000 532*1***6 ~295 ~334 711.5
600*1200 632*1***6 ~295 ~354 820.6
700*1400 732*1***6 ~295 ~363 1063.8

&&&&&&:
