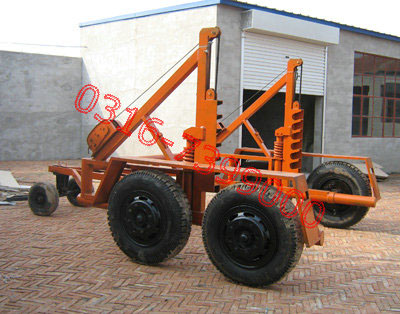

Multifunctional cable drum trailer - :BJTC105

Multifunctional cable drum trailer - :BJTC105
:
Hebei Chaoyang Wire-laying Equipment Factory
: 2012-12-20 18:07:42
:
cable carrier,pulley carrier trailer,pulley traile

Inquiry Supplier / Manufacturer
Description Of Multifunctional cable drum trailer - :BJTC105

Multifunctional cable drum trailer - :BJTC105 Specificaton & Trade Terms

Model:BJTC105
Place Of Originhebei,china
Price TermEX-Work
Payment TermT/T
Brand name: Bangjie
Model No.:BJTC105
Technical Data:
Model No. BJTC105-3 BJTC105-5
Power 11kw 18kw
Rate Load 3T 5t
Speed 1200m/h 1200m/h
rated drawbar pull 20kn 40kn
Applicable Max. Dia ≤φ2300mm ≤φ2800mm
Applicable Max. Width ≤1300mm ≤1500mm
Size 3300mm×2450mm×1850mm 3800mm×2700mm×2200mm
Weight 1250kg 2100kg
