PVC COATED COPPER TUBES - ARAI APPROVED COPPER TUBES Specificaton & Trade Terms
| Model | ARAI APPROVED COPPER TUBES |
|---|
| Place Of Origin | INDIGO METALLOYS, INDIA |
|---|
| Certifications | ASTM-B-75/68 and UNS C12200 |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 300 TONNES PER MONTH |
|---|
| Minimum Order | 100 KGS |
|---|
| Loading Ports | NAVASHEVA / MUNDRA |
|---|
| Delivery Time | DEPENIDING UPON THE PRODUCT |
|---|

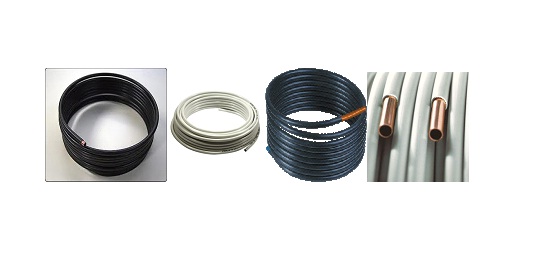

1. Indigo Metalloys manufacture high quality PVC coated copper tubes & copper coils designed for protection against aggressive environment and colour coded to aid identification. Copper tube with a PVC sheath may be an effective method of protection against attack in harsh operating conditions.
2. The PVC is tightly extruded onto the tube and is available in black, white, blue, yellow and green colours according to customer requirements. Material used to coat copper tubes is polyvinylchloride (PVC) of the following characteristics.
3. Copper tubes meet the specifications of international standards like ASTM-B-75/68 and UNS C12200. Tests are conducted as per specification for Physical & Mechanical properties & Chemical Composition. ECT is conducted for bare tubes. Finally, PVC Coating is done as per ASTM-D-1047. PVC Coated tube is ensured leak proof after conducting pressure drop test.
PRODUCT APPLICATION AREAS
1. LPG Gas Kits
2. Oil & Gas Industries
3. Instrumentation Industries
4. Plumbing & Drainage
1} Standard Copper tube 6 & 8 mm O.D. with PVC coating (Black) bunch coil of 14 & 16ft length.
2} Standard Sizes, thickness of copper tube and PVC can be as per requirement. Other sizes as per requirement subject to our confirmation can be manufactured.
