Plate and Trapezia-shaped Plate - DX Specificaton & Trade Terms
| Model | DX |
|---|
| Place Of Origin | China |
|---|
| Packaging | standard package |
|---|
| Brand | DX |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

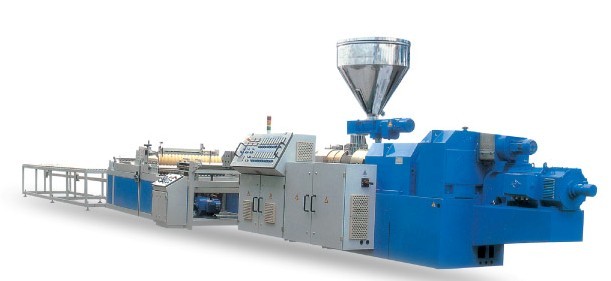

PVC Wave Plate and Trapezia-Shaped Plate Production Line
PVC wave plate and trapezia-shaped plate production line is comprised by a twin conical screws extruder SJSZ-65×22 and corresponding wave plate forming machine, tractor and cutting machine, can be used for continuous produce structural season resistance UPVC color block igniting plastic cement wave plate, if replacing the relevant components, the line can produce the chequer plank, possess steady molding performance, tight structure, high automation degree.
Main Technique Parameter
The model of main machine SJSZ-65×22
The Die Style Coat Hanger Style Flat Plate Die L=1000mm Cooling Mold Dimensions 1000mm 540mm Hauling Motor Power 2.2kW (Frequency Conversion)
The Forming Unit Thermo or vacuum forming Cooling Means Water-Cooling Cutting Means Shear Style (Pneumatic Control)
Big Wave R=15 h=16.5
Wave Space 63mm Hauling Velocity 0.5-5m/min Cutting Travel 500mm
Small wave R=9 h=8
Wave Space 36mm Hauling Roller Length 1000mm Air Pressure 0.4-0.6MPa
