Pulling grip,Standard Pulling Grips - 02 Specificaton & Trade Terms
Model | 02 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

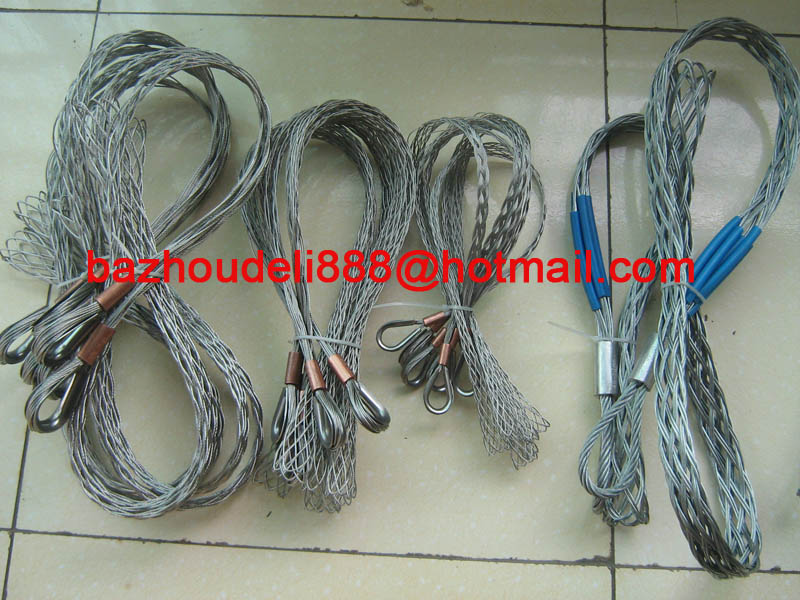

Pulling grip,Standard Pulling Grips
Cable socks (also called cable grips or cable stockings) for utility, triplex, fibre optic, low voltage and high voltage cable pulling - includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks.
cable socks are manufactured from high tensile galvanised wire rope or stainless steel wire rope.
Cable socks provide an efficient method for cable installation and support within their load carrying capacity -
Single Eye Cable Socks
For straight forward pulling applications: eg pulling electric cables through underground ducts. The wire rope mesh has a "grip of iron" - the harder you pull, the tighter the grip.
No. Applicable diameter Rated load Length
Scd-01 6-13mm 900 kg 300 mm
Scd-02 12-19mm 1590 kg 550 mm
Scd-03 19-25mm 2120 kg 600 mm
Scd-04 25-38mm 2560 kg 700 mm
Scd-05 7-12mm 300 kg 315 mm
Scd-06 13-18mm 400 kg 365 mm
Scd-07 18-24mm 600 kg 365 mm
Scd-08 25-35mm 700 kg 465 mm
Scd-09 35-48mm 1100 kg 535 mm
Scd-010 49-60mm 2000 kg 715 mm
Scd-011 60-75mm 2000 kg 830 mm
Scd-012 75-90mm 2500 kg 930 mm
Scd-013 90-115mm 2500 kg 1045 mm
Scd-014 110-135mm 3000 kg 1170 mm
Scd-015 130-150mm 3000 kg 1295 mm
Double Eye Cable Socks
This type is also used for pulling cables but allows the cable to pass completely through the sock. The double eye cable sock can also be supplied split and with a lace, so that it can be wrapped around the cable and then laced up (rather than inserting the cable from one end).
No. Applicable diameter Rated load Length
Sdc-01 7-13mm 300Kg 315mm
Sdc-02 13-18mm 400 Kg 365mm
Sdc-03 18-25mm 600 Kg 465mm
Sdc-04 25-35mm 700 Kg 705mm
Sdc-05 35-48mm 1100 Kg 870mm
Sdc-06 48-60mm 2000 Kg 975mm
Sdc-07 60-75mm 2000 Kg 1110mm
Sdc-08 75-90mm 2500 Kg 1210mm
Sdc-09 90-115mm 2500 Kg 1350mm
Sdc-010 110-135mm 3000 Kg 1450mm
Sdc-011 130-150mm 3000 Kg 1600mm
