Pulling grip,Standard Pulling Grips - zs

Pulling grip,Standard Pulling Grips - zs
:
Bazhou Dpair Power Tools Factory
: 2012-07-06 17:55:43
:
Cable socks,Single eye cable sock

Inquiry Supplier / Manufacturer
Description Of Pulling grip,Standard Pulling Grips - zs

Pulling grip,Standard Pulling Grips - zs Specificaton & Trade Terms

Modelzs
Place Of Originchina
Packagingwooden
Branddeli
Price Termfob
Payment TermT/T
Supply Ability60000km
Minimum Order1000m
Loading Portstianjin
Delivery Time3days

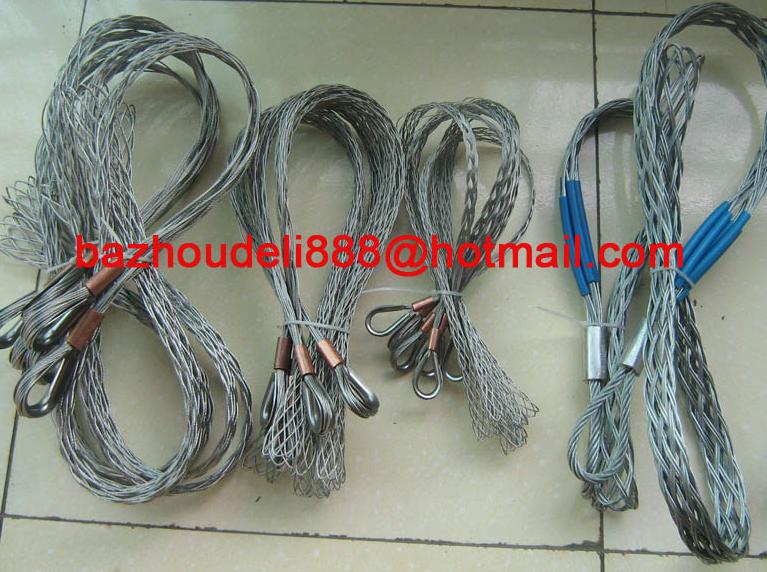

Cable socks (also called cable grips ,cable stockings,pulling grips,support grips) provide a means of cable pulling into ducts, trenches .
Cable socks are manufactured from high tensile galvanised and stainless steel wire rope,incudes
includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks.
Single-head, single strand cable socks

No. Applicable diameter Rated load Length
Scd-01 6-13mm 900 kg 300 mm
Scd-02 12-19mm 1590 kg 550 mm
Scd-03 19-25mm 2120 kg 600 mm
Scd-04 25-38mm 2560 kg 700 mm
Scd-05 7-12mm 300 kg 315 mm
Scd-06 13-18mm 400 kg 365 mm
Scd-07 18-24mm 600 kg 365 mm
Scd-08 25-35mm 700 kg 465 mm
Scd-09 35-48mm 1100 kg 535 mm
Scd-010 49-60mm 2000 kg 715 mm
Scd-011 60-75mm 2000 kg 830 mm
Scd-012 75-90mm 2500 kg 930 mm
Scd-013 90-115mm 2500 kg 1045 mm
Scd-014 110-135mm 3000 kg 1170 mm
Scd-015 130-150mm 3000 kg 1295 mm
Single-head, double strand cable socks
No. Applicable diameter Rated load Length
Scs-01 10-20mm 1860 kg 600 mm
Scs-02 20-30mm 2256 kg 600 mm
Scs-03 30-40mm 3696 kg 600 mm
Scs-04 40-50mm 5490 kg 600 mm
Scs-05 50-65mm 5490 kg 600 mm
Scs-06 65-80mm 7320 kg 600 mm
Scs-07 80-95mm 7320 kg 600 mm
Scs-08 95-110mm 10613 kg 900 mm
Scs-09 12-16mm 800 kg 1300 mm
Scs-010 16-20mm 1000 kg 1300 mm
Scs-011 20-25mm 1200 kg 1300 mm
Scs-012 25-37mm 2400 kg 1400 mm
Scs-013 37-50mm 1600 kg 1400 mm
Scs-014 50-60mm 1800 kg 2000 mm
Scs-015 60-80mm 2000 kg 2000 mm
Scs-016 80-100mm 2500 kg 2000 mm
Scs-017 100-120mm 3000 kg 2000 mm
