Rigid Strander Stranding Machine Rigid Frame S

Inquiry Supplier / Manufacturer
Description Of Rigid Strander Machine - JLK

Rigid Strander Machine - JLK Specificaton & Trade Terms

ModelJLK
Place Of OriginChina
Price TermEX-Work
Payment TermT/T

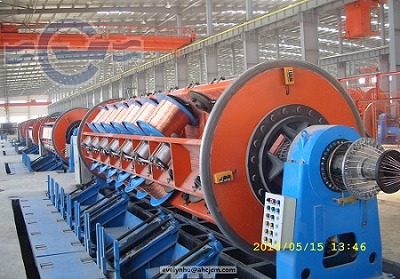

Rigid Strander (Disc / Fork type) is used for copper or aluminum wires to be bunched into huge single unit of compact conductor for XLPE, Shaped, Spiral or Pre-Spiral

Main Features:

Cradles can be fork type alloy steel casted or rectangular shaped steel fabricated fastened between disc.Discs are fitted on hollow shaft tube with under roller or without under roller carriage with heavy duty pedestal bearing to support the carriage.
Each bobbin is held between pintles with suitable interlock for pintles. Individual wires constant tension can be controlled through mechanically or electronically brake tension.
Heavy duty enclosed gear box or external gearbox at the rear end of each carriages having provision driving the carriages in anti clockwise or clockwise direction.
Dual capstan for constant pull and lay, pneumatic / hydraulic braking system for each carriage.
Optional accessories can be fitted in the line such as compacting heads for round / shaped / spiral conductor etc. Machine can come with auto loader or bucket loader.
Synchronization can be done through line shaft or with fully automation control of the whole line through digital drives & PLC, MMI or SKADA etc.
