Rolling door motor(DC24V-300KG) - DC24V-300KG Specificaton & Trade Terms
| Model | DC24V-300KG |
|---|
| Place Of Origin | China |
|---|
| Packaging | one set packaged in two cartons(mainframe carton and accessories carton). About 450 sets for one con |
|---|
| Brand | HUALIN |
|---|
| Certifications | CE |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T,L/C |
|---|
| Supply Ability | 25000 sets per month |
|---|
| Minimum Order | 100 |
|---|
| Loading Ports | xiamen |
|---|
| Delivery Time | within 15-25 days after receipt of the deposit |
|---|
Detailed Product Description

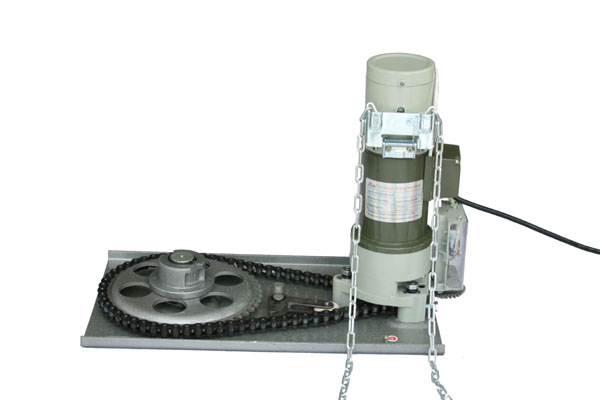

DC-300KG ROLLING DOOR MOTOR
Input/output Voltage:220V/24V
Rated Power:170W
Advancing Force:300KG
Maximum raising height:6m
Output Torque: 168N.m
Output speed: 5.4r/min
Chain No.: 10A
Diameter of roller: 104-106mm
DC24V-300KG ROLLING DOOR MOTOR
HL-DC24V Direct Current Rolling Door Motor is the new latest model developed by our company.
This product is adapted many patents and techniques, easy installation, reliable operation. This product is suitable for the automatic rolling door, office, shops and hospitals.
Functions:
1) Remote control function: up/stop, down/stop, stop/lock, unlock.
2) Manual control function: up/stop, down/stop.
3) Storage power: If the power supply is steady, the motor is driven by AC220V and transferred into DC24V, In the absence of power supply, the storage power can supply power and DC24V rolling door motor can be operated about 20 times.
Features:
1) Good design, advanced structure, strong power.
2) Easy installation, Long service life.
3) Low noise, Small power wastage, little vibration.
4) Remote control.
5) Supply reserved power equipment, In the absence of power, the users can also operate the motors.
6) The battery is 4Ah/12.
