SSE160 Construction Lift - SSE160 Construction Lift Specificaton & Trade Terms
| Model | SSE160 Construction Lift |
|---|
| Place Of Origin | China |
|---|
| Packaging | Steel shelf |
|---|
| Brand | FTH-CHINA |
|---|
| Certifications | CE, Gost |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000 Set/Sets / Year |
|---|
| Minimum Order | 1 SET |
|---|
| Loading Ports | Tianjin port, China |
|---|
| Delivery Time | 5 days within confirmation |
|---|
We can produce special specification Construction Lift according to your requirements. If you need, contact us!

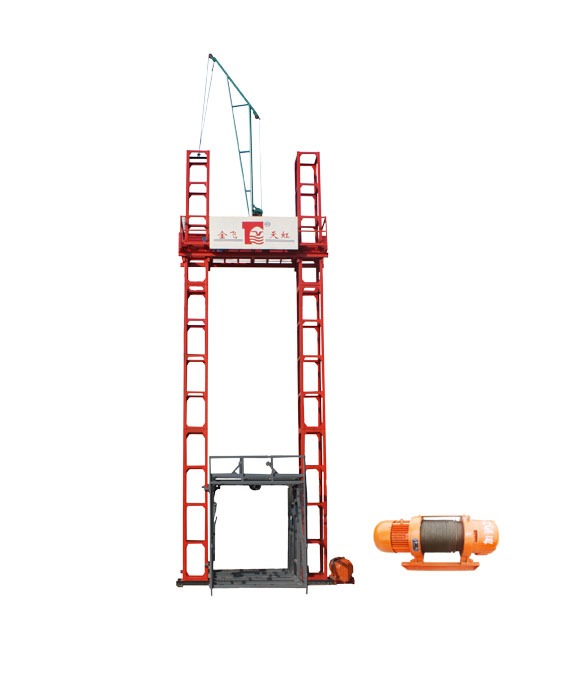

SSE160 Construction Lift
SSE160 Self-propelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied in building construction, overall decoration and housing maintenance, etc. It improveds the tradditional security system of lift, effectively preventing recoil and overload, which would lead to material fall-off during the travel of basket. Our product is conforming to the requirements of Security Inspection Authorities. The common height of this machine is 24m, which can also be changed according to customer's needs.
1. Equipped with self-lifting system; Self-erection and removal; Height can adjust with the building; Labor-saving and economic.
2. Adopting the attached rod instead of wind rope; improved construction conditions.
3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.
6. Stop device is available on request for floor parking.
7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.
8. Adopting Overload Limiter to avoid overload accidents.
9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.
10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the personnel.
"---"type winch characteristic
1. Adopt VEZ taper motor, starting torque is big;
2. it’s easy to use, braking torque is 1.5-2 times the power of the common closed type winch, have instant braking effect.
3. Adopt two stage boxes; gear ratio is big, running smooth and steady, low noise.
4. The frame structure is ingenious; it’s easy to install, maintain and move.
