Sales Chain Hoist - 001 Specificaton & Trade Terms
| Model | 001 |
|---|
| Place Of Origin | China |
|---|
| Packaging | carton |
|---|
| Brand | Yangtze River |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000set/day |
|---|
| Minimum Order | 1set |
|---|
| Loading Ports | tianjinxingang |
|---|
| Delivery Time | 7days |
|---|

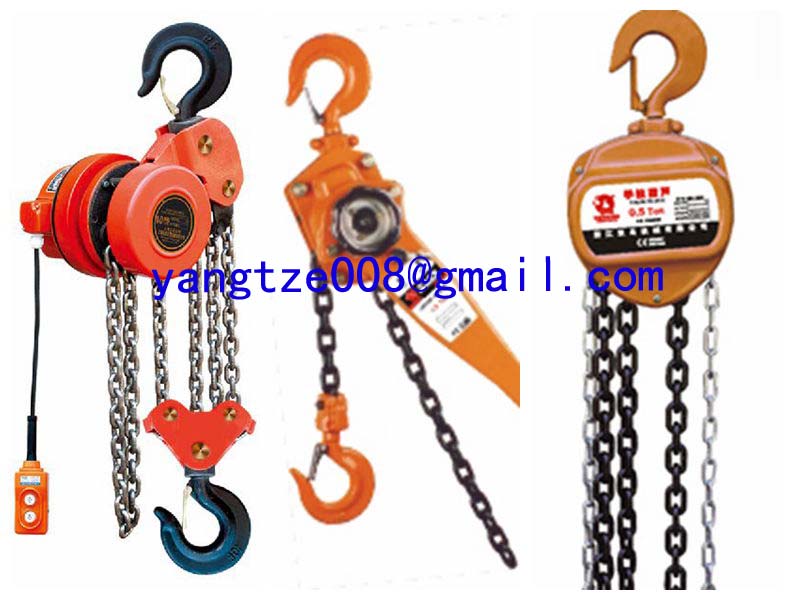

Sales Chain HoistRatchet puller Manual Hoist are great for precision lifting without handling messy chains.
Simply crank handle to lift and position loads. Direction of pull controlled with one flip of the self-locking thumb lever.
1,Impact resistant, stamped steel frame, gear case and cover for durability and light weight.
2,Hardened steel load sharing gears.
3,Double pawl arrangement for assured load control.
4,Two chain guide rollers for positive chain engagement.
5, Weston type braking system for positive load control and positioning.
6,Simple one-handed, free chaining for fast load attachment
7,Minimal maintenance with no special tools required.
This Lever Block is used to connect conductor or tools when stringing works for overhead conductors,and also used to load or draw heavy materials.The length of chain can be made longer according to option.
Sales Chain Hoist
Model
No. Capacity (tons) Standard Lift (m) Load chain diameter(mm) Strands of load chain Weight
(kg)
CJ-7.5 0.75 1.5 6.3 1 6.9
CJ-15 1.5 1.5 7.1 1 9.7
CJ-30 3 1.5 9 1 16.3
CJ-60 6 1.5 9 2 26.7Sales Chain Hoist
