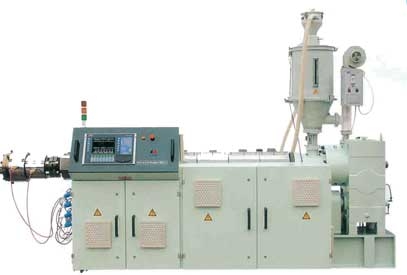

Series High Effective Single Screw Extruder - SL30B Specificaton & Trade Terms
Model | SL30B |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
High Speed Single Screw Extruders Two stages styles integrated design, reinforcing plasticization capacity guaranteed high performance and high speed extruding. The particular kind of barrier, BM type synthetical mixing design guaranteed the blending effect.High shear and low melting plasticization temperature guaranteed extrude the materials in high performance. Design conception High speed on the high quality base, high yield extrusion.
*Low temperature plasticization design concept, ensure extrude the high quality of the products.
*High torque output, super thrust bearing.
*The gear and shaft is high intensity alloy steel, and are processed by carburization and tooth grinding.
*High hardness and clean degree, and extremely low noise.
*Automatic hopper dryer to prevent materials moist.
*Automatic feeder effectively reduces the labour intensity.
*May select weight in feeding unit to control product weight.
*Automatic PLC intelligence control to achieve the linkage action of main machine and auxiliary machine.
*Man-machine interface easy to supervise, the process and the machinery condition can be conveniently comprehended.
*According to the need to replace control method(temperature control meter)
*Material character is 38CrMoALA, nitrogen treatment,anti-grinding.
*Strict temperature control accuracy, wind cooling and combined with water cooling.
*Unique feeding entrance design, has the perfect water-cooling device.
*Professional tramp trapezoid groove design bushing.
*The screw barrel with the groove surface of feeding bottom covering, has the enhancement feeding function, which make sure to extrude high speed and high yield. The pipe extrusion: Applicable to PP-R, PE ignite gas pipe and PEX cross-linking tube, the aluminum plastic composite tube, ABS pipe, PVC pipe, HDPE pipe silicon core pipe and different co-extruding composite pipe. Plate and sheet material extruding: Applicable to plate and sheet material such as PVC, PET, PS, PP, PC and other different plastic extruding, like silk and bar, etc.. Profile extrusion: By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PVC and polyolefin. Modification and granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
