Shake-proof shackle, Safety Anchor Shackle - Great wall Specificaton & Trade Terms
| Model | Great wall |
|---|
| Place Of Origin | China |
|---|
| Packaging | carton |
|---|
| Brand | Great wall |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000set/day |
|---|
| Minimum Order | 1set |
|---|
| Loading Ports | tianjinxingang |
|---|
| Delivery Time | 7days |
|---|

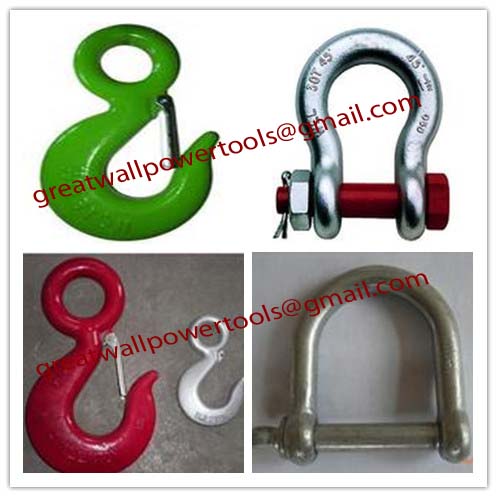

Shake-proof shackle, Safety Anchor ShackleShackle
This shackle os designed for using to connect the messenger wire rope to the equipment for the stringing works of overhead conductors. Shake-proof shackle, Safety Anchor Shackle
Standard Size Dimensions(mm) Working load(kgf) Weight(kg)
A B C D E F
12 63 20 35 14 32 M14 1500 0.5
16 80 26 45 18 40 M18 2000 0.9
18 95 29 53 21 45 M20 2500 1.35
20 104 31 58 23 50 M24 3500 1.85
22 117 34 65 263 55 M24 4500 2.98
24 126 39 70 28 62 M30 6000 3.64
30 153 45 85 34 75 M36 9000 6.44
