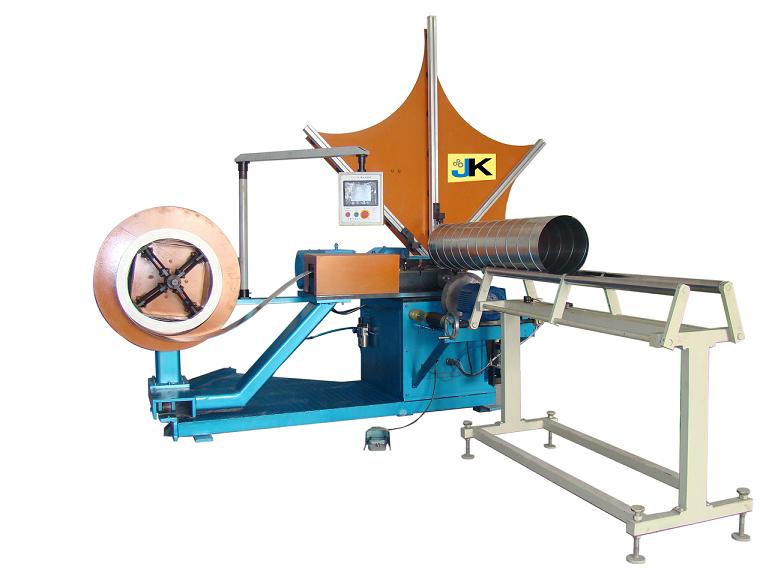

Spiral duct machine - ST80 Specificaton & Trade Terms
| Model | ST80 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Description
Spiral tubeformer ST80 has the largest diameter range from 80mm to 1600mm, and use the special steel tape molds, which can reduce the molds cost heavily. Also the automatic cutting system can easily set any length to cut and has the reliable performance.The most economic spiral duct machine.
Technical Data
Model ST80
Tube Diameter 80~1600mm(3"~62")
Material Thickness Galvanized Steel0.4~1.2mm
Stainless Steel0.4~0.8mm
Strip Width 137mm
Strip Speed up to 40m/min
Main Power 5.5KW
Cutting Power 4KW
Cutting Power 4KW
Air Pressure 0.5~0.7kpm
Dimension 2150*1950*2900mm
Weight 1560Kg
